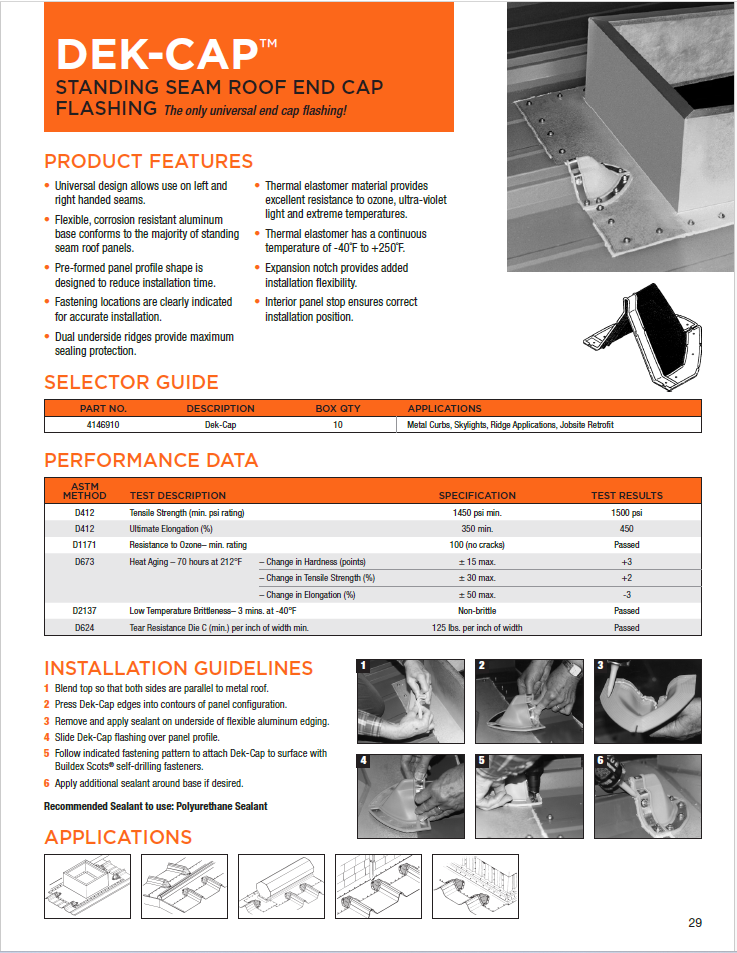

DEK-CAP FLASHING

Main image for Dek-Cap Flashing
Product Attributes

Part #: 4146910
Download Submittal Report

Specifications

Part Number Size Pipe Outside Diameter(In.) Dektite Base Diameter (In.) Dektite Height (In.) Box Qty Diameter Length Material Washer
4146910 N/A 10 N/A N/A Thermal Elastomer N/A

Features

  • Universal design allows use on left and right handed seams.
  • Flexible, corrosion resistant aluminum base conforms to the majority of standing seam roof panels.
  • Pre-formed panel profile shape is designed to reduce installation time.
  • Fastening locations are clearly indicated for accurate installation.
  • Dual underside ridges provide maximum sealing protection.
  • Thermal elastomer material provides excellent resistance to ozone, ultra-violet ligth, and extreme temperatures.
  • Thermal elastometer has a continuous temperature of -40F to +250F
  • Expansion notch provides added installation flexibility.
  • Interior panel stop ensures correct installation position.

General Applications & Uses

Applications

  • Sealing Pipe Penetrations Through Metal Roof Panels
  • Flashing Solar Panel or HVAC Conduit Lines
  • Protecting Against Water Intrusion at Antenna or Satellite Mast Installations
  • Roof Penetrations in Pre-Engineered Metal Buildings

Product Details

  • Size: N/A
  • Product Length (Inches): N/A
  • Product Diameter (Inches): N/A
  • Material: Thermal Elastomer
  • Finish: N/A
  • Material Grade: N/A
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: N/A
  • Country of Origin: VN
  • Paintable: No
  • BABA Compliant: No
  • Made In America: No
  • Buy America: No
  • Buy American: No
  • Fastener Head Style: N/A
  • Head Size: N/A
  • Threads Per Inch: N/A
  • Thread Size: N/A
  • Max Material Attachments: N/A
  • Drill Tap Capacity: N/A
  • Tensile Strength: 1,500
  • Torque Strength: N/A
  • ICC Approved: No
  • Washer Size: N/A
  • Washer Style: N/A
