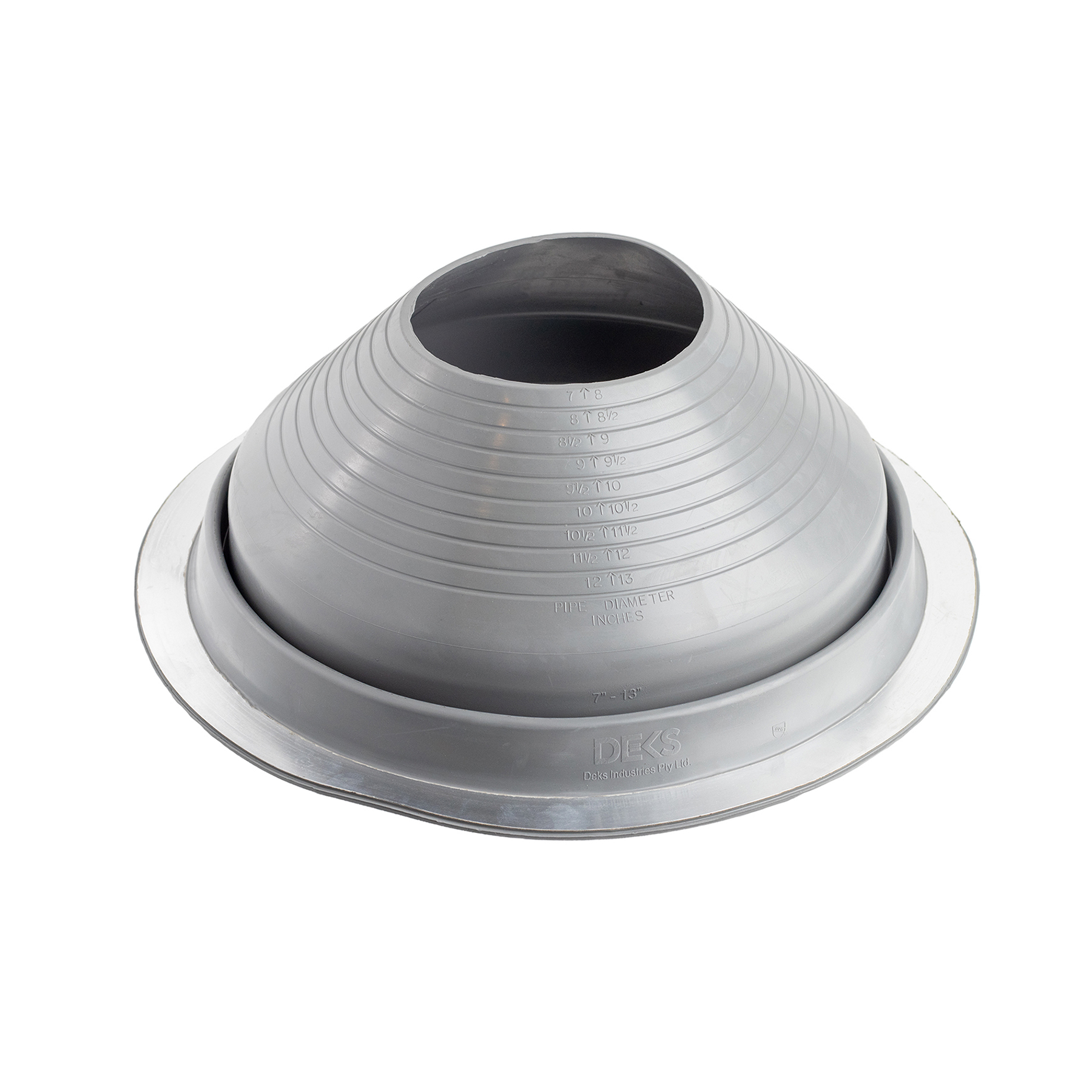

DEKTITE FLASHING #8

Main image for Dektite
Product Attributes

Part #: 4025910

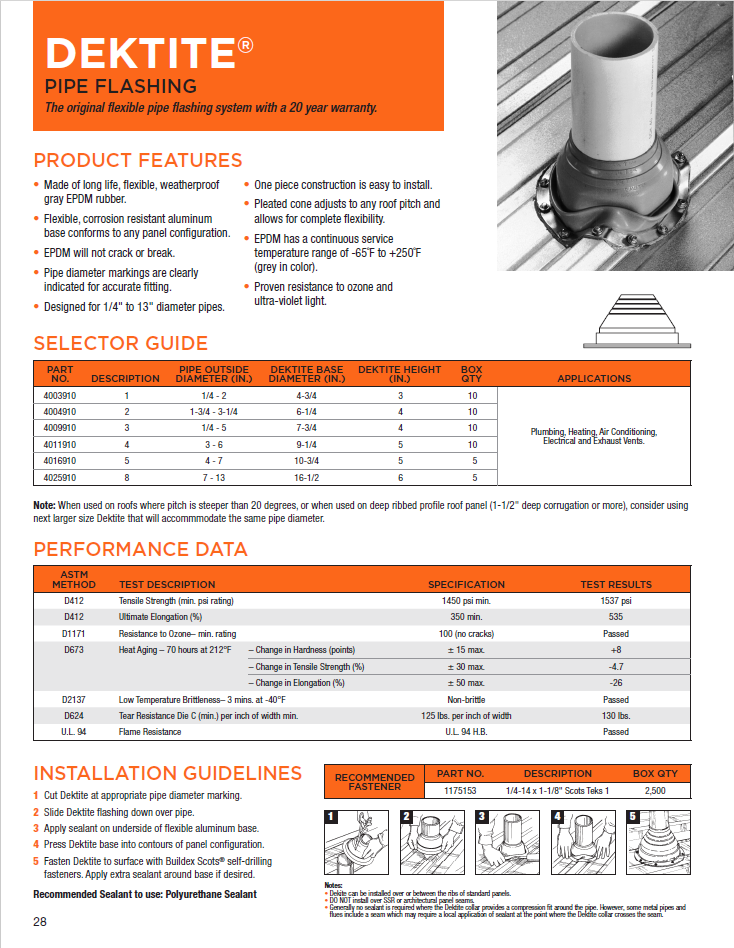

Download Submittal Report

Specifications

Part Number Size Pipe Outside Diameter(In.) Dektite Base Diameter (In.) Dektite Height (In.) Box Qty Diameter Length Material Washer
4025910 #8 7 - 13" 16-1/2" 6" 5 7-13" 6" EPDM N/A

Features

  • Made of long-life flexible, weatherproof gray EPDM rubber or red silicone.
  • Flexible, corrosion resistant aluminum base conforms to any panel configuration.
  • EPDM and silicone will not crack or break.
  • Pipe diamter markings are clearly indicated for accurate fitting.
  • Designed for 1/4" to 18" diameter pipes.
  • One piece construction is easy to install.
  • Pleated cone adjusts to any roof pitch and allows for complete flexibility.
  • EPDM has a continuous service temperature range of -65F to +250F (grey in color).
  • Silicone has a continuous service temperature range of -40F to +350F (red in color).
  • Provn resistance to ozone and ultra-violet light.

General Applications & Uses

Applications

  • Sealing Pipe Penetrations Through Metal Roof Panels
  • Flashing Solar Panel or HVAC Conduit Lines
  • Protecting Against Water Intrusion at Antenna or Satellite Mast Installations
  • Roof Penetrations in Pre-Engineered Metal Buildings

Product Details

  • Size: #8
  • Product Length (Inches): 6"
  • Product Diameter (Inches): 7-13"
  • Material: EPDM
  • Finish: N/A
  • Material Grade: N/A
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: N/A
  • Country of Origin: VN
  • Paintable: No
  • BABA Compliant: No
  • Made In America: No
  • Buy America: No
  • Buy American: No
  • Fastener Head Style: N/A
  • Head Size: N/A
  • Threads Per Inch: N/A
  • Thread Size: N/A
  • Max Material Attachments: N/A
  • Drill Tap Capacity: N/A
  • Tensile Strength: 1,537
  • Torque Strength: N/A
  • ICC Approved: No
  • Washer Size: N/A
  • Washer Style: N/A
