ROCK-ON� TYPE S 2PWH HI-LO� CLC 9-15 X 1-5/8''

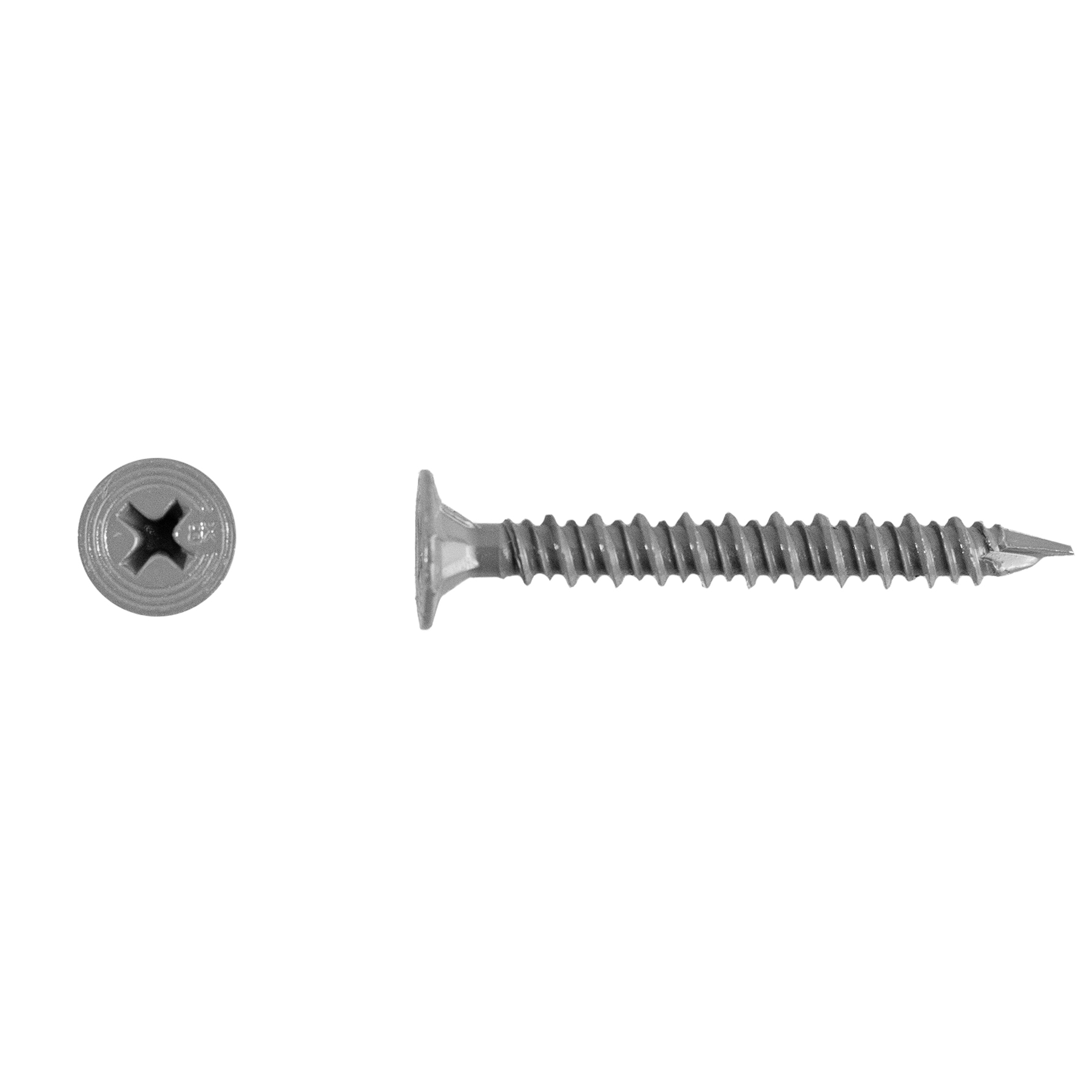

Main image for ROCK-ON
Product Attributes

Part #: 2153500

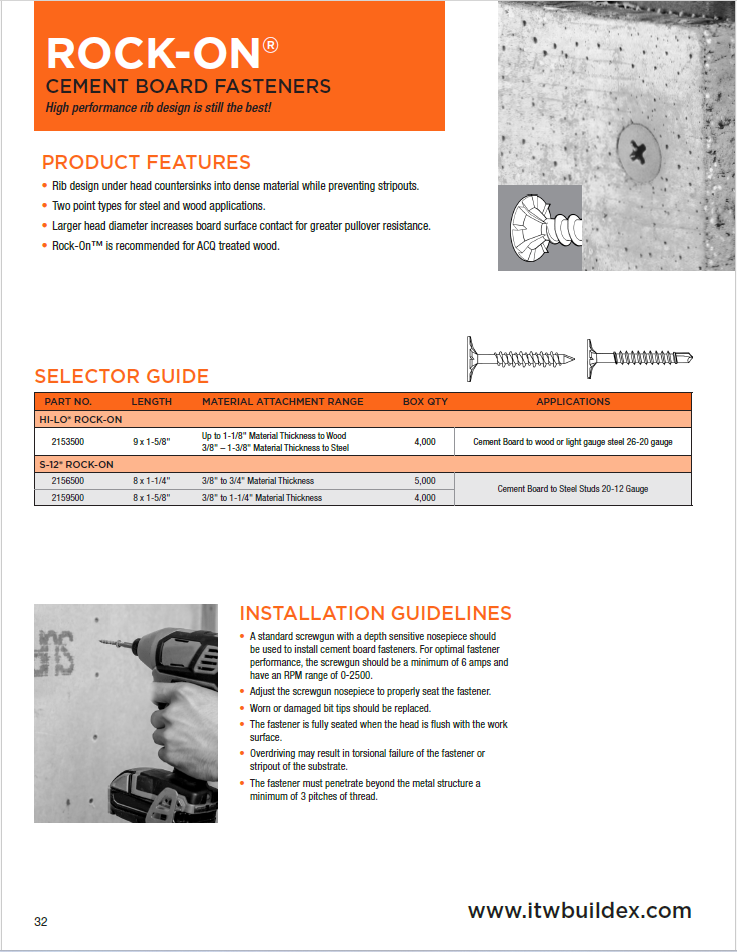

Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
2153500 9 x 1-5/8" Bugle Type S Climaseal .018-.035 1.25 4,000 #9 1-5/8" Steel N/A

Features

  • Rib design under head countersinks into dense material while preventing stripouts.
  • Two point types for steel and wood applications.
  • Larger head diameter increases board surface contact for greater pullover resistance.
  • Rock-On� is recommended for ACQ treated wood.

General Applications & Uses

Applications

  • Installing Cement Board on Wood Subfloors
  • Fastening Cement Board to Wood or Steel Wall Studs
  • Securing Cement Board for Exterior Sheathing
  • Attaching Cement Board Around Fireplaces or Stove Surrounds

Product Details

  • Size: 9 x 1-5/8"
  • Product Length (Inches): 1-5/8"
  • Product Diameter (Inches): #9
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: #2 Phillips Bit
  • Country of Origin: TW
  • Paintable: No
  • BABA Compliant: No
  • Made In America: No
  • Buy America: No
  • Buy American: No
  • Drill Point: Type S
  • Fastener Head Style: Bugle
  • Head Size: N/A
  • Threads Per Inch: 15
  • Thread Size: N/A
  • Max Material Attachments: 1.25
  • Drill Tap Capacity: .018-.035
  • Tensile Strength: 1,800
  • Torque Strength: 50
  • ICC Approved: No
  • Washer Size: N/A
  • Washer Style: N/A
