TEKS� 1 ABOT HWH CL (3/8 AF) 1/4-14 X 7/8''

Main image for Teks 1
Product Attributes

Part #: 1891000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachment Box Qty Diameter Length Material Washer
1891000 1/4-14 x 7/8'' Hex Washer Head #1 Climaseal 0.018-0.095" 0.38 4,000 1/4" 7/8" Steel N/A

Features

  • Teks Drill Point
  • Climaseal
  • Patented ABOT anti-backout thread form
  • Integrated Drill Point & Tapping Threads
  • Integrated Drill Point & Tapping Threads

General Applications & Uses

Applications

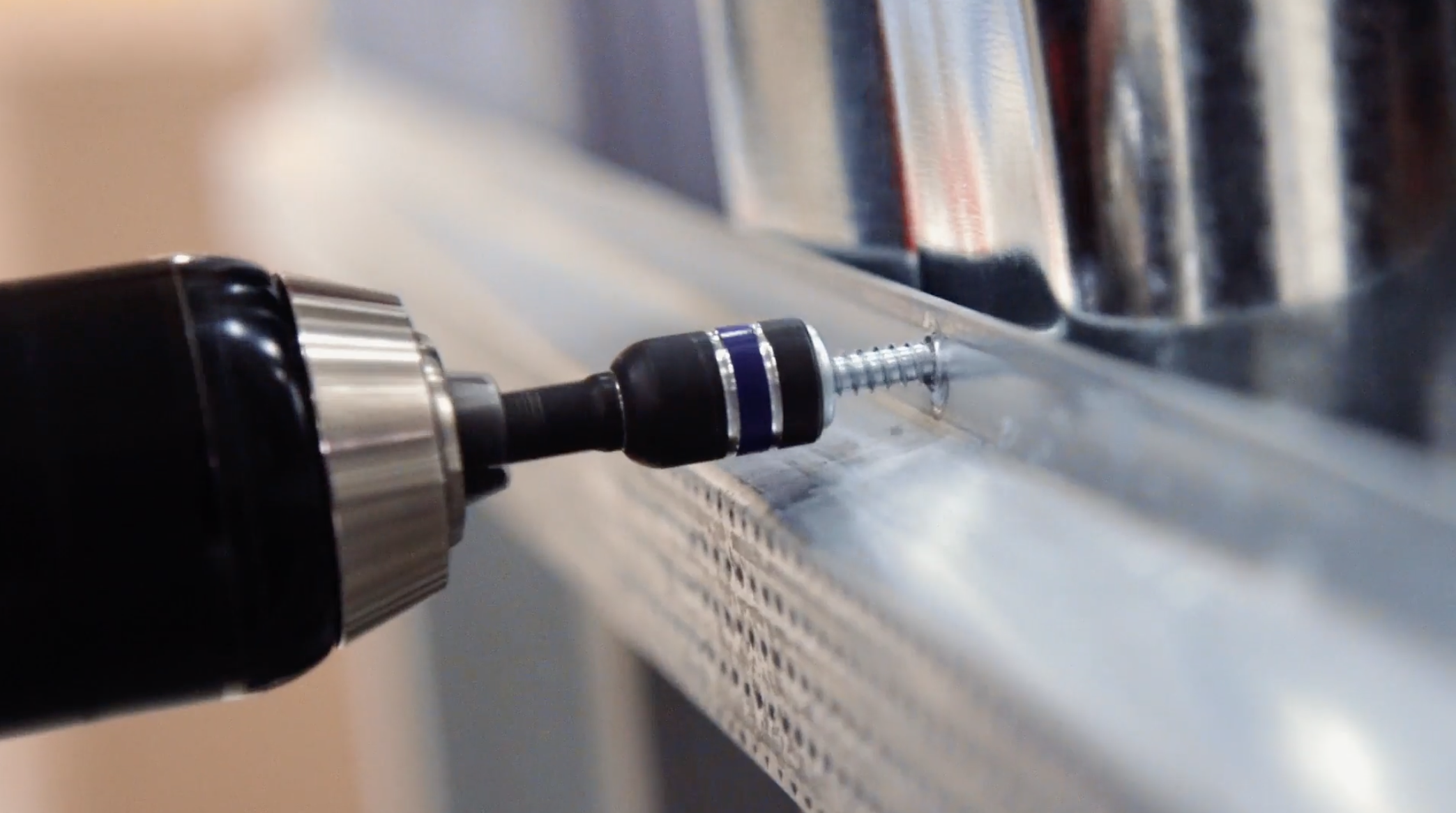

  • Framing Connection in Light-Gauge Steel Studs
  • Securing Electrical Boxes or Mounting Backets
  • HVAC Ductwork Assembly
  • Assembling Metal Furring Channel or Hat Channel

Product Details

  • Size: 1/4-14 x 7/8''
  • Product Length (Inches): 7/8"
  • Product Diameter (Inches): 1/4"
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: 3/8'' Drive Socket
  • Country of Origin: US
  • Paintable: No
  • BABA Compliant: Yes
  • Made In America: Yes
  • Buy America: Yes
  • Buy American: Yes
  • Drill Point: #1
  • Fastener Head Style: Hex Washer Head
  • Head Size: 3/8"
  • Threads Per Inch: 14
  • Thread Size: 1/4/2014
  • Max Material Attachments: 0.38
  • Drill Tap Capacity: 0.018-0.095"
  • Tensile Strength: 4,060
  • Torque Strength: 150
  • ICC Approved: ESR-1976
  • Los Angeles Residential Code: Yes
  • Florida Building Code: Yes
  • Florida Residential Code: Yes
  • Washer Size: N/A
  • Washer Style: N/A
