TEKS� 2 HWH CL 10-24 X 5/8''

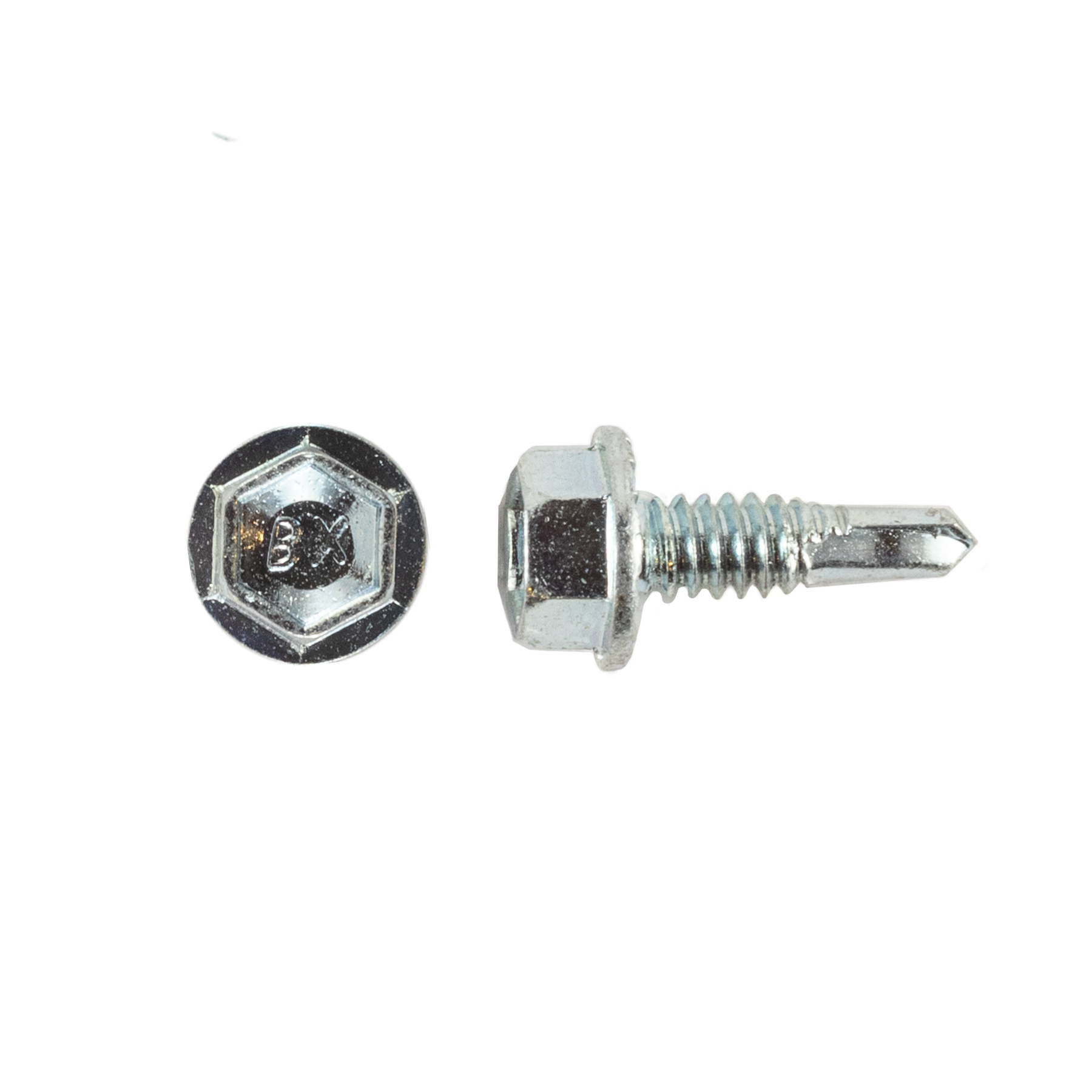

Main image for Teks 2
Product Attributes

Part #: 1786200
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachment Box Qty Diameter Length Material Washer
1786200 10-24 x 5/8'' Hex Washer Head #2 Electro-zinc .036-.175 0.2 5,000 #10 5/8" Steel N/A

Features

  • Sharp convex drill point has precise cutting edges to improve drill performance with less effort.
  • Non-walking point provides fast material engagement.
  • Unique point to thread design extrudes the metal preventing stripout.
  • Point to thread design maximizes pullout performance and minimizes backout.
  • Drills and taps in the broadest range of applications.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.

General Applications & Uses

Applications

  • Framing Connection in Light-Gauge Steel Studs
  • Securing Electrical Boxes or Mounting Backets
  • HVAC Ductwork Assembly
  • Assembling Metal Furring Channel or Hat Channel
  • Track to stud and stud splicing.
  • Hat channel to stud.

Product Details

  • Size: 10-24 x 5/8''
  • Product Length (Inches): 5/8"
  • Product Diameter (Inches): #10
  • Material: Steel
  • Finish: Electro-zinc
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: 5/16'' Drive Socket
  • Country of Origin: TW
  • Paintable: No
  • BABA Compliant: No
  • Made In America: No
  • Buy America: No
  • Buy American: No
  • Drill Point: #2
  • Fastener Head Style: Hex Washer Head
  • Head Size: 5/16"
  • Threads Per Inch: 24
  • Thread Size: 24-Oct
  • Max Material Attachments: 0.2
  • Drill Tap Capacity: .036-.175
  • Tensile Strength: 2,702
  • Torque Strength: 65
  • ICC Approved: No
  • Washer Size: N/A
  • Washer Style: N/A
