TEKS� 5.0 HWH CL 12-24 X 2

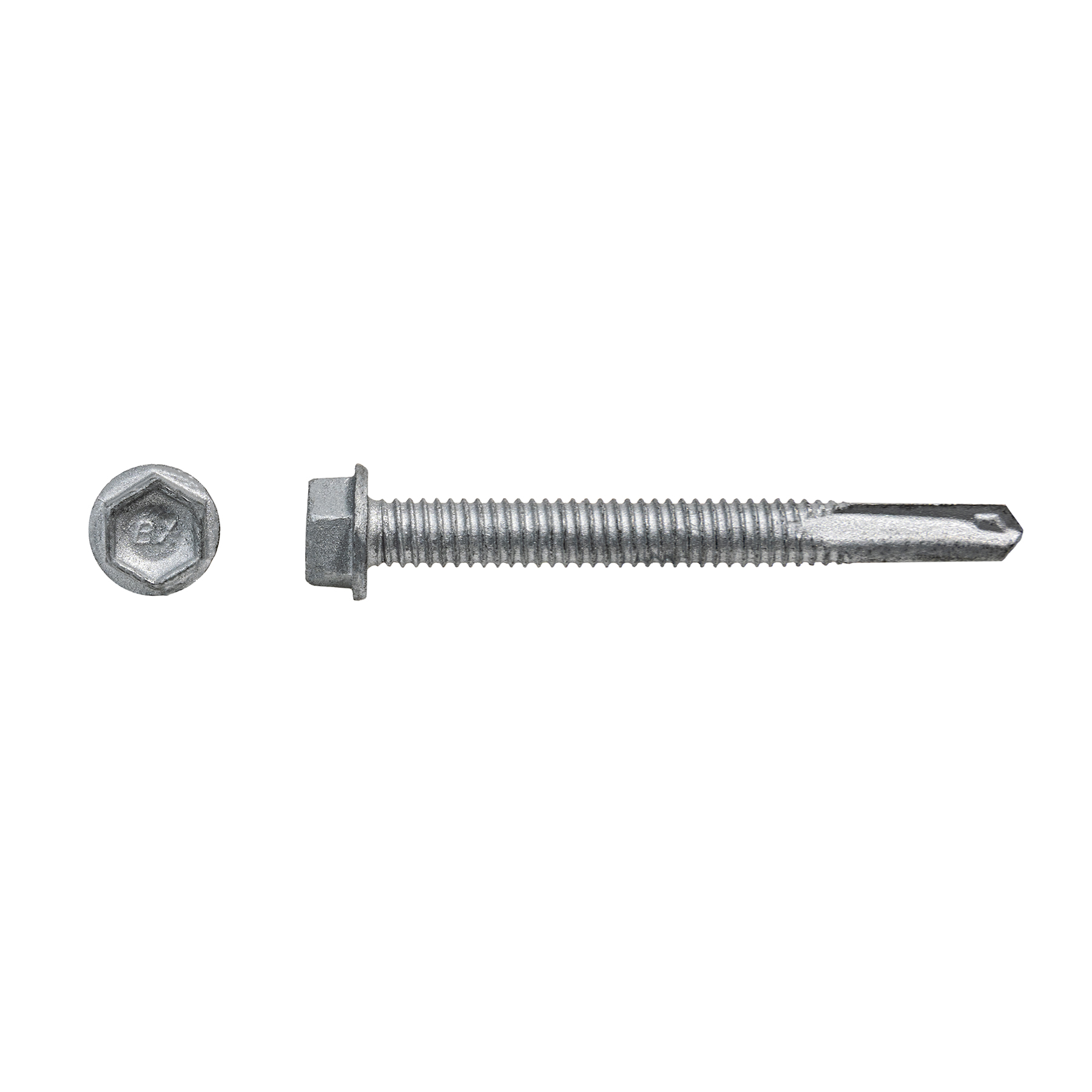

Main image for Teks� 5.0
Product Attributes

Part #: 1772000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1772000 12-24X2" Hex Washer Head #5.0 0.125-0.500 1.08 2,000 #12 2" Steel

Features

  • Patented drill point improves drilling performance in 1/8� steel through �� Steel
  • Engineered for fast drilling and smooth tapping with less effort
  • Climaseal� finish provides excellent corrosion resistance and lower tapping torque
  • Attaches up to 0.625� of materials

General Applications & Uses

Applications

  • Attaching Heavy Steel Brackets to Structural Steel
  • Securing Metal Decking to Steel Frame
  • Fastening Rooftop Mechanical Curbs and Frames
  • Assembling Steel Framing in Pre-Engineered Metal Buildings

Product Details

  • Size: 12-24X2"
  • Product Length (Inches): 2"
  • Product Diameter (Inches): #12
  • Material: Steel
  • Installation Tool: 5/16'' Drive Socket
  • Country of Origin: US
  • Paintable: No
  • BABA Compliant: No
  • Made In America: Yes
  • Buy America: No
  • Buy American: No
  • Drill Point: #5.0
  • Fastener Head Style: Hex Washer Head
  • Head Size: 5/16"
  • Threads Per Inch: 24
  • Thread Size: 0
  • Max Material Attachments: 1.08
  • Drill Tap Capacity: 0.125-0.500
  • Tensile Strength: 4,750
  • Torque Strength: 100
