TEKS� 5.0 HWH/BD CL 12-24 X 1-1/2"

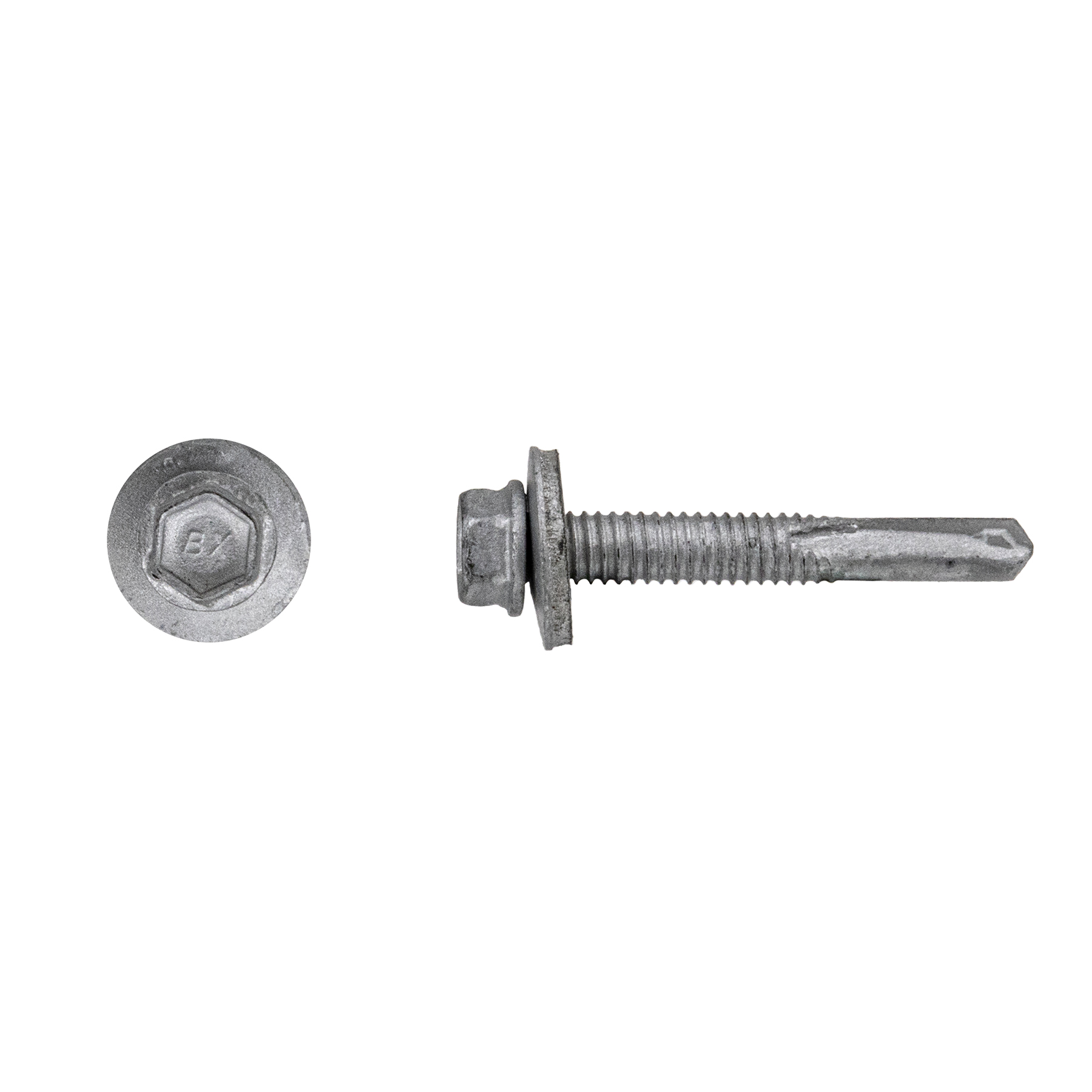

Main image for Teks� 5 with Bonded Washer
Product Attributes

Part #: 1670000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1670000 12-24 x 1-1/2" Hex Washer Head #5.0 Climaseal .125-.500 0.580" 2,000 #12 1-1/2" Steel BONDED

Features

  • Patented drill point improves drilling performance in 1/8� steel through �� Steel
  • Engineered for fast drilling and smooth tapping with less effort
  • Climaseal� finish provides excellent corrosion resistance and lower tapping torque
  • Attaches up to 0.625� of materials

General Applications & Uses

Applications

  • Metal Roofing and Wall Panels to Structural Steel
  • Framing Connections in Steel Building Construction
  • Mechanical Equipment Installation
  • Exterior Architectural Cladding System

Product Details

  • Size: 12-24 x 1-1/2"
  • Product Length (Inches): 1-1/2"
  • Product Diameter (Inches): #12
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • Installation Tool: 5/16'' Drive Socket
  • Country of Origin: US
  • Paintable: No
  • BABA Compliant: No
  • Made In America: Yes
  • Buy America: No
  • Buy American: No
  • Drill Point: #5.0
  • Fastener Head Style: Hex Washer Head
  • Head Size: 5/16"
  • Threads Per Inch: 24
  • Thread Size: 24-Dec
  • Max Material Attachments: 0.580"
  • Drill Tap Capacity: .125-.500
  • Tensile Strength: 4,750
  • Torque Strength: 100
  • ICC Approved: YES
  • Washer Size: 19/32"
  • Washer Style: BONDED
