TEKS� 5 HWH/BD CL 1/4-28 X 5''

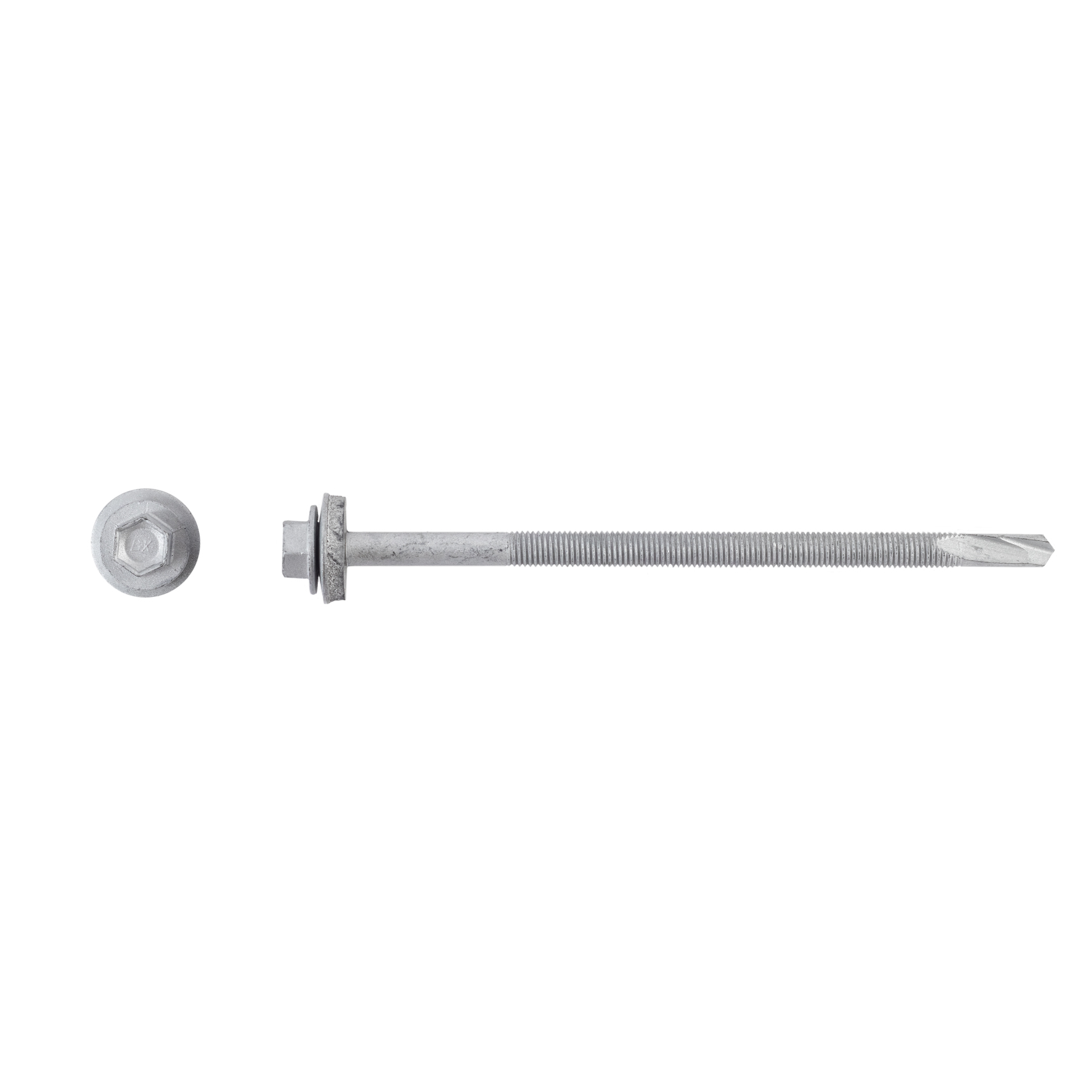

Main image for Teks 5 with Bonded Washer
Product Attributes

Part #: 1647000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1647000 1/4-28 x 5'' Hex Washer Head #5 Climaseal .125-.500 4.03 250 1/4" 5" Steel Bonded

Features

  • Vulcanized bonding of washer eliminates separation of EPDM from the metal backing.
  • Dual sealing bonded washer prevents leaks.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.
  • Point has precise cutting edges to improve drill performance with less effort.
  • Point-to-thread design maximizes pullout performance and minimizes backout.

General Applications & Uses

Applications

  • Metal Roofing and Wall Panels to Structural Steel
  • Framing Connections in Steel Building Construction
  • Mechanical Equipment Installation
  • Exterior Architectural Cladding System

Product Details

  • Size: 1/4-28 x 5''
  • Product Length (Inches): 5"
  • Product Diameter (Inches): 1/4"
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: 3/8'' Drive Socket
  • Country of Origin: US
  • Paintable: No
  • BABA Compliant: No
  • Made In America: Yes
  • Buy America: No
  • Buy American: No
  • Drill Point: #5
  • Fastener Head Style: Hex Washer Head
  • Head Size: 3/8"
  • Threads Per Inch: 28
  • Thread Size: 1/4/2028
  • Max Material Attachments: 4.03
  • Drill Tap Capacity: .125-.500
  • Tensile Strength: 5,577
  • Torque Strength: 234
  • ICC Approved: No
  • Washer Size: 3/4'' O.D. Bonded
  • Washer Style: Bonded
