TEKS� 3 SCOTS� CL 1/4-14 X 1-1/4''

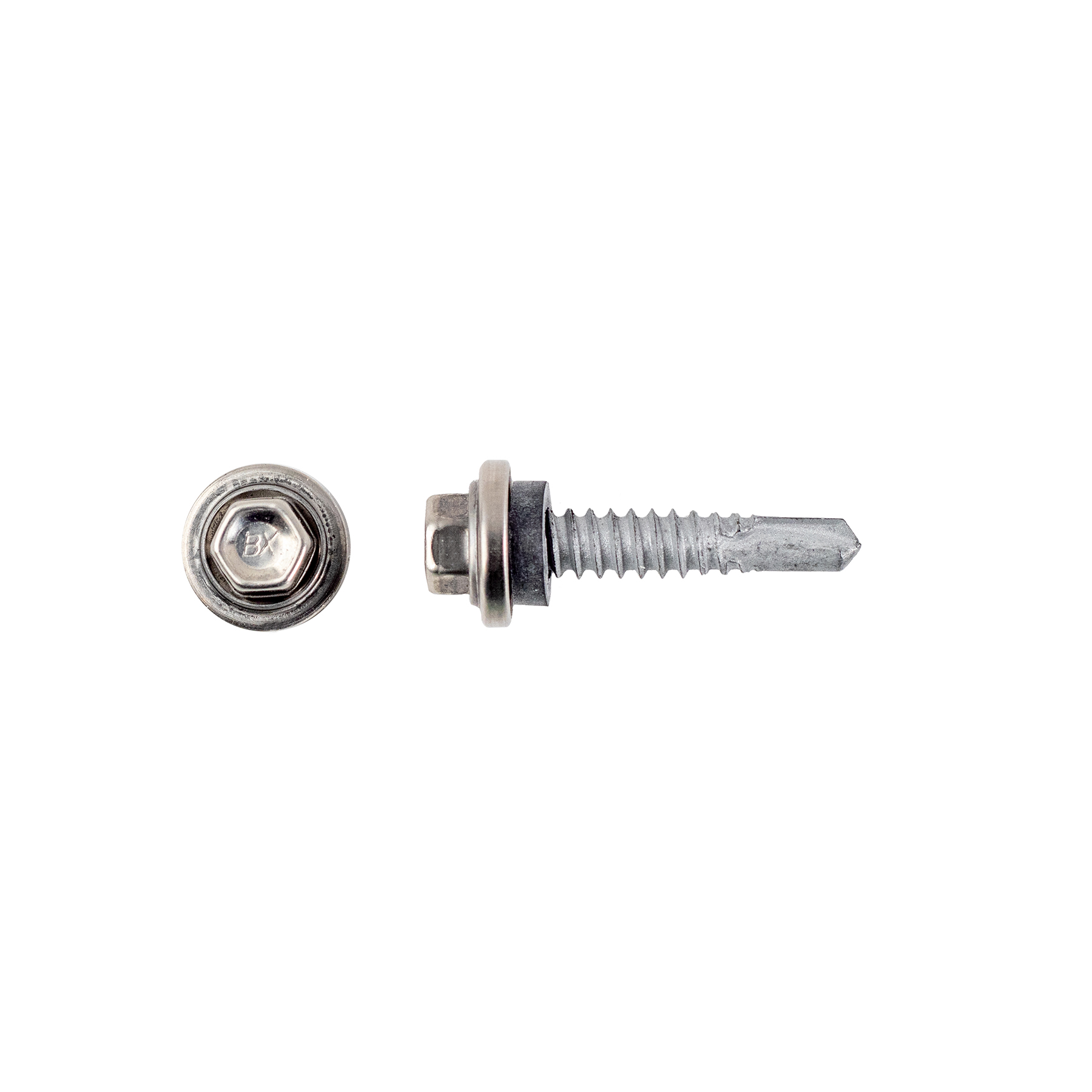

Main image for Teks 3 with Scots Washer
Product Attributes

Part #: 1616000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1616000 1/4-14 x 1-1/4'' Hex Washer Head #3 Climaseal .036-.210 0.63 2,000 1/4" 1-1/4" Steel Integral System

Features

  • For improved appearance and extra life an integral design controls the EPDM rubber washer.
  • Combines 300 series stainless steel exterior with the strength of carbon steel.
  • 300 Series stainless most preferred for galvalume long life panels.
  • Maximum sealing and corrosion protection.
  • Point has precise cutting edges to improve drill performance with less effort.
  • Non-walking point provides fast material engagement.
  • Point to thread design maximizes pullout performance and minimizes backout.
  • Drills and taps in the broadest range of applications.

General Applications & Uses

Applications

  • Framing with Light-to-Medium Gauge Steel Studs
  • Attaching Metal Trim and Flashing in Building Exteriors
  • Mounting Utility Brackets or Supports to Light Structural Steel
  • Assembling Components in Agricultural or Outdoor Equipment Housings
  • #17 Diameter replacement screw for stripped #12 and 1/4" diameter fasteners.

Product Details

  • Size: 1/4-14 x 1-1/4''
  • Product Length (Inches): 1-1/4"
  • Product Diameter (Inches): 1/4"
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: 5/16'' Drive Socket
  • Country of Origin: TW
  • Paintable: No
  • BABA Compliant: No
  • Made In America: No
  • Buy America: No
  • Buy American: No
  • Drill Point: #3
  • Fastener Head Style: Hex Washer Head
  • Head Size: 5/16"
  • Threads Per Inch: 14
  • Thread Size: 1/4/2014
  • Max Material Attachments: 0.63
  • Drill Tap Capacity: .036-.210
  • Tensile Strength: 4,060
  • Torque Strength: 150
  • ICC Approved: No
  • Washer Size: 7/16'' O.D. Integral System
  • Washer Style: Integral System
