TYPE AB #2 PHILLIPS PANCAKE CLC 10-16 X 1'' 250/BAG

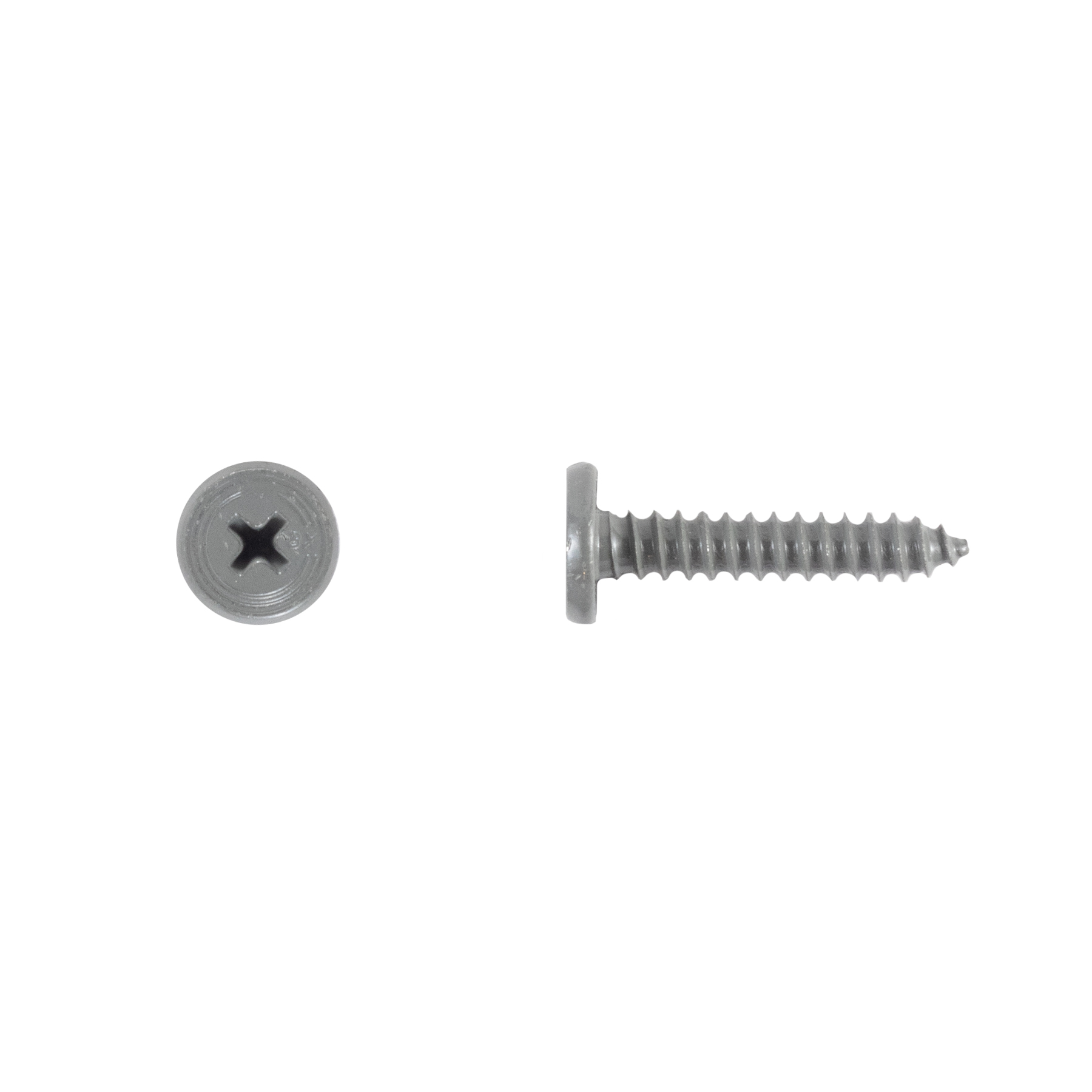

Main image for Buildex Tapper
Product Attributes

Part #: 1596553
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1596553 10-16 x 1'' Pancake Head Type AB Climaseal .012-.048 0.25 4,000 #10 1" Steel N/A

Features

  • #12 diameter utilizes the ITW exclusive Phillips Square-Driv with patented interlocking components system.
  • Patented interlocking sytem keeps the driver securely mated to the fastener during installation and gives a hands-free installation.
  • #10 Diameter uses the coated Phillips Drive System providing improved driver bit-to-fastener stability and friction fit.
  • Sharp convex drill point has precise cutting edges to improve drill performance with less effort.
  • Low profile pancake head style ensures proper installation of metal roof panels.

General Applications & Uses

Applications

  • Securing Metal Framing Behind Drywall or Panels
  • Attaching Steel Backing Plates in Walls or Ceilings
  • Mounting Flat Surface Brackets in Low-Clearance Areas
  • Assembling Framing in Data Centers or Clean Rooms

Product Details

  • Size: 10-16 x 1''
  • Product Length (Inches): 1"
  • Product Diameter (Inches): #10
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: #2 Phillips Bit
  • Country of Origin: TW
  • Paintable: No
  • BABA Compliant: No
  • Made In America: No
  • Buy America: No
  • Buy American: No
  • Drill Point: Type AB
  • Fastener Head Style: Pancake Head
  • Head Size: --
  • Threads Per Inch: 16
  • Thread Size: 16-Oct
  • Max Material Attachments: 0.25
  • Drill Tap Capacity: .012-.048
  • Tensile Strength: 1,936
  • Torque Strength: 82
  • ICC Approved: No
  • Washer Size: N/A
  • Washer Style: N/A
