TEKS� 3 HWH CL 12-14 X 2-1/2''

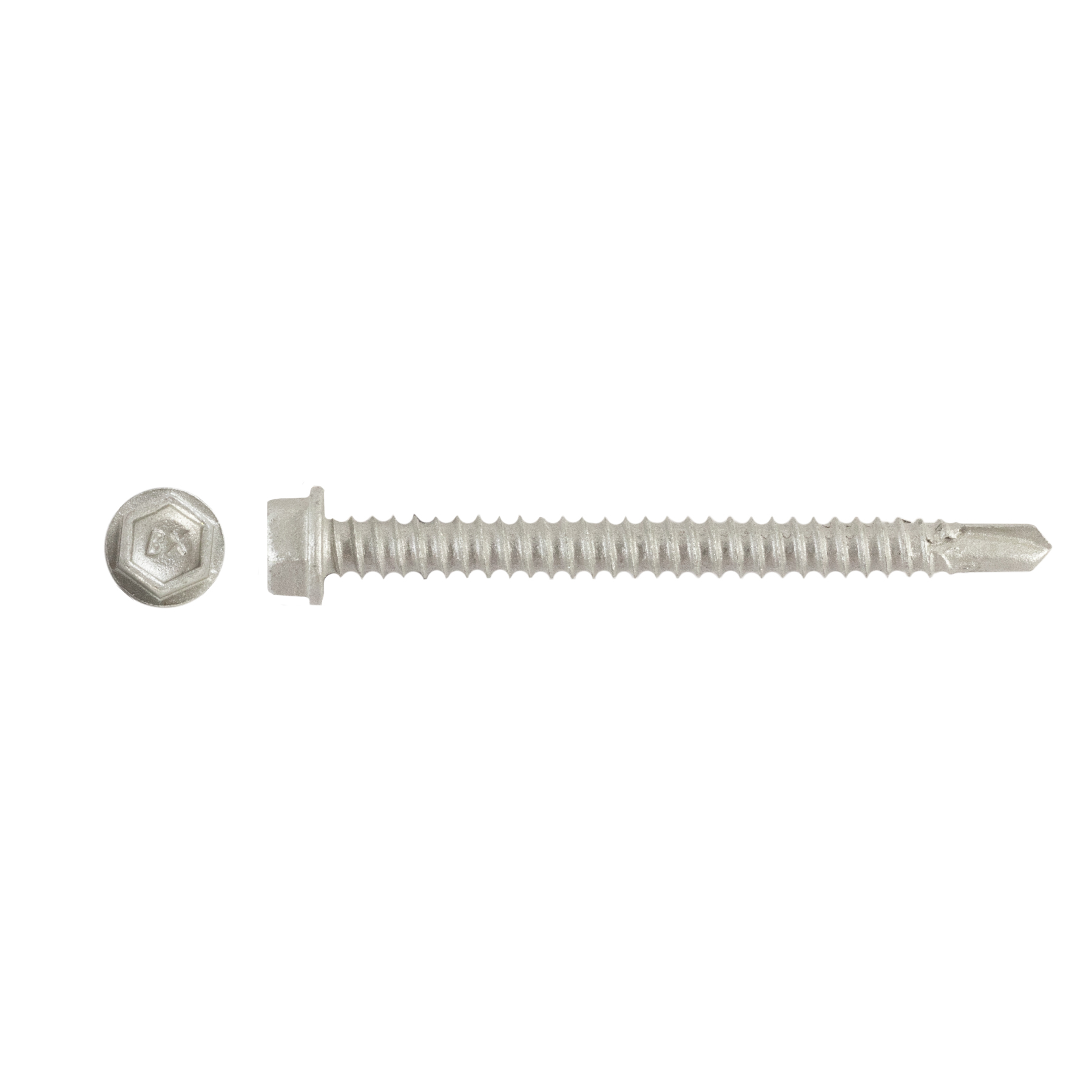

Main image for Teks 3
Product Attributes

Part #: 1553000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachment Box Qty Diameter Length Material Washer
1553000 12-14 x 2-1/2'' Hex Washer Head #3 Climaseal .036-.210 1.95 1,000 #12 2-1/2" Steel N/A

Features

  • Point has precise cutting edges to improve drill performance with less effort.
  • Non-walking point provides fast material engagement.
  • Point-to-thread design maximizes pullout performance and minimizes backout.
  • Drills and taps in the broadest range of applications.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.

General Applications & Uses

Applications

  • Framing Connection in Light-Gauge Steel Studs
  • Securing Electrical Boxes or Mounting Backets
  • HVAC Ductwork Assembly
  • Assembling Metal Furring Channel or Hat Channel
  • Roof clip to steel framing.
  • Retrofit framing.
  • Commercial overhead steel doors, hinges, and latches.

Product Details

  • Size: 12-14 x 2-1/2''
  • Product Length (Inches): 2-1/2"
  • Product Diameter (Inches): #12
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: 5/16'' Drive Socket
  • Country of Origin: TW
  • Paintable: No
  • BABA Compliant: No
  • Made In America: No
  • Buy America: No
  • Buy American: No
  • Drill Point: #3
  • Fastener Head Style: Hex Washer Head
  • Head Size: 5/16"
  • Threads Per Inch: 14
  • Thread Size: 14-Dec
  • Max Material Attachments: 1.95
  • Drill Tap Capacity: .036-.210
  • Tensile Strength: 2,778
  • Torque Strength: 92
  • ICC Approved: ESR-1976
  • Los Angeles Residential Code: Yes
  • Florida Building Code: Yes
  • Florida Residential Code: Yes
  • Washer Size: N/A
  • Washer Style: N/A
