TRUGRIP� TYPE 17 HWH/BD CL 14-10 X 1-1/2'' 250/BAG

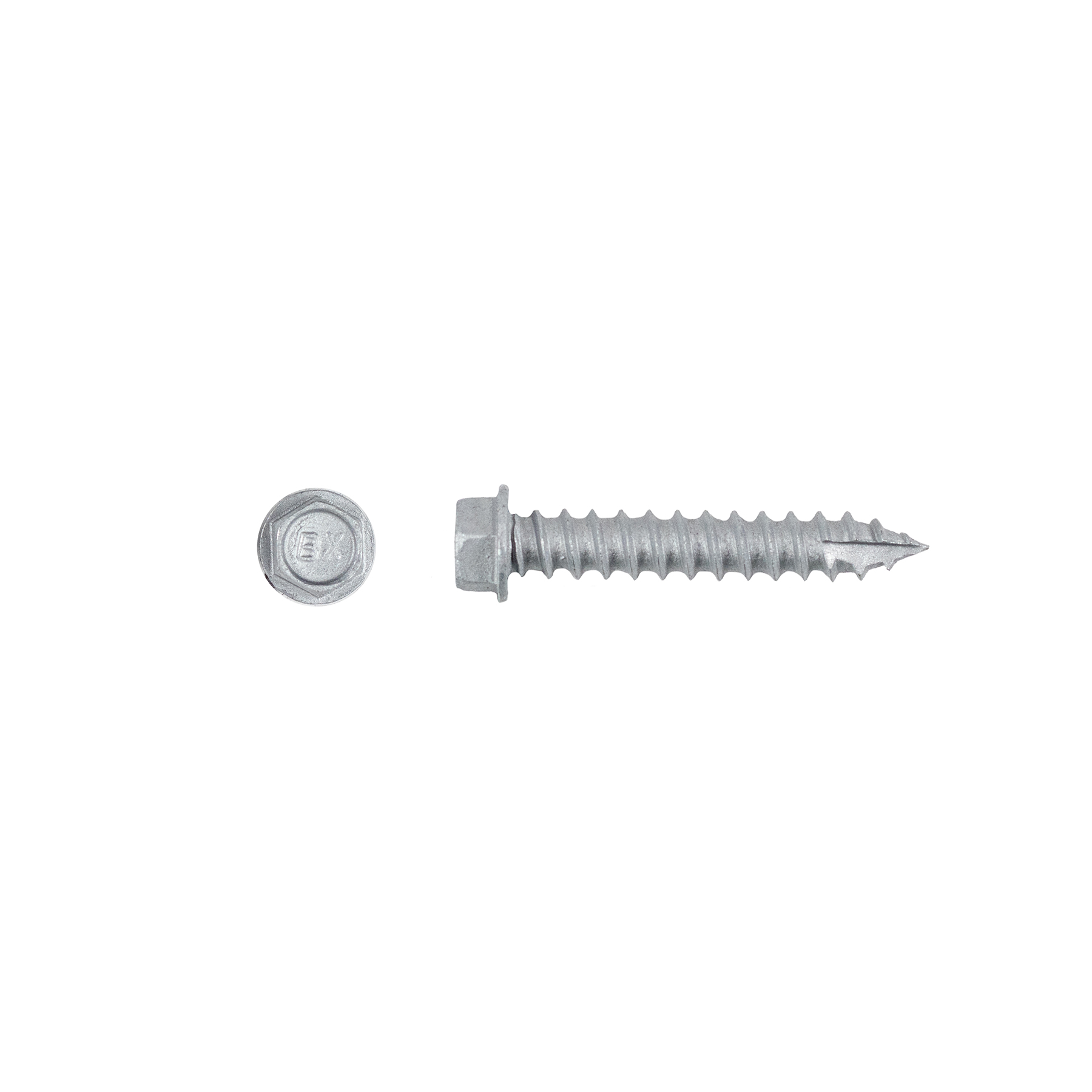

Main image for Trugrip with Bonded Washer
Product Attributes

Part #: 1526053

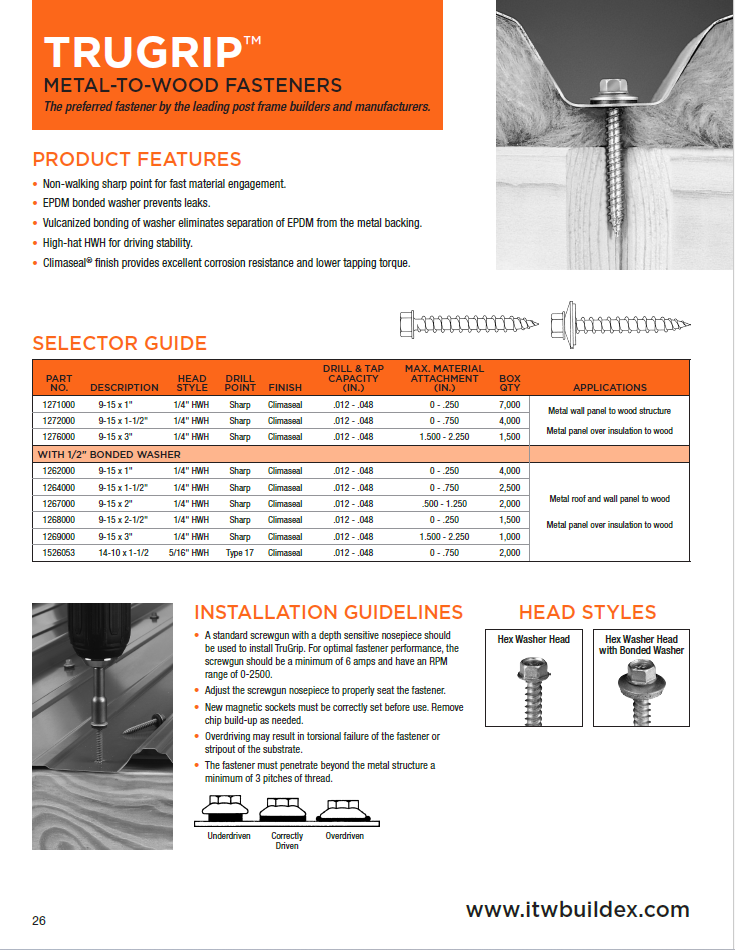

Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Length Diameter Material Washer
1526053 14-10 x 1-1/2'' Hex Washer Head Type 17 Climaseal .012-.048 0-0.750 2,000 1-1/2" #14 Steel Bonded

Features

  • Non-walking sharp point for fast material engagement.
  • EPDM bonded washer prevents leaks.
  • Vulcanized bonding of washer eliminates separation of EPDM from the metal backing.
  • High-hat HWH for driving stability.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.

General Applications & Uses

Applications

  • Fastening Exterior Metal Roofing and Wall Panels
  • Installing Flashing, Trim, and Fascia on Steel Structures
  • Attaching Rooftop Equipment Curbs or Frames to Steel Decking
  • Mounting Utility Components in Agricultural or Industrial Facilities

Product Details

  • Size: 14-10 x 1-1/2''
  • Product Length (Inches): 1-1/2"
  • Product Diameter (Inches): #14
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: 5/16'' Drive Socket
  • Country of Origin: TW
  • Paintable: No
  • BABA Compliant: No
  • Made In America: No
  • Buy America: No
  • Buy American: No
  • Drill Point: Type 17
  • Fastener Head Style: Hex Washer Head
  • Head Size: 5/16"
  • Threads Per Inch: 10
  • Thread Size: 14-10
  • Max Material Attachments: 0-0.750
  • Drill Tap Capacity: .012-.048
  • Tensile Strength: 4,060
  • Torque Strength: 150
  • ICC Approved: No
  • Washer Size: 1/2'' O.D. Bonded
  • Washer Style: Bonded
