TEKS� 4.5 HWH/BD CL 12-24 X 1-1/4''

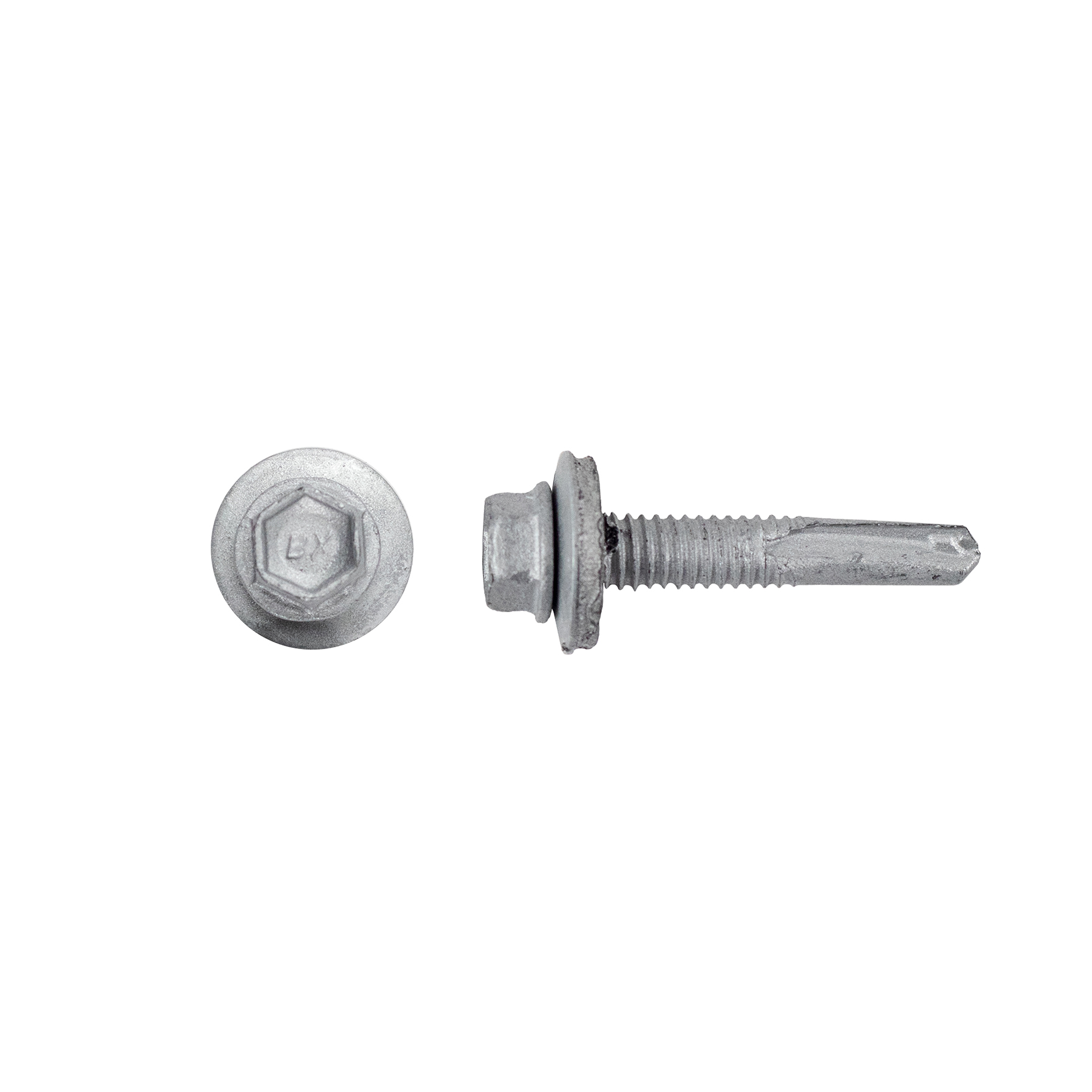

Main image for Teks 4.5 with Bonded Washer
Product Attributes

Part #: 1415000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1415000 12-24 x 1-1/4'' Hex Washer Head #4.5 Climaseal .125-.375 0.455 2,500 #12 1-1/4" Steel Bonded

Features

  • Vulcanized bonding of washer eliminates separation of EPDM from the metal backing.
  • Dual sealing bonded washer prevents leaks.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.
  • Point has precise cutting edges to improve drill performance with less effort.
  • Point-to-thread design maximizes pullout performance and minimizes backout.

General Applications & Uses

Applications

  • Attaching Exterior Metal Panels to Structural Steel
  • Mounting Rooftop Equipment and Flashing
  • Securing Medium-Gauge Framing Components
  • Installing Utility Supports or Hangers Outdoors

Product Details

  • Size: 12-24 x 1-1/4''
  • Product Length (Inches): 1-1/4"
  • Product Diameter (Inches): #12
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: 5/16'' Drive Socket
  • Country of Origin: US
  • Paintable: No
  • BABA Compliant: No
  • Made In America: Yes
  • Buy America: Yes
  • Buy American: Yes
  • Drill Point: #4.5
  • Fastener Head Style: Hex Washer Head
  • Head Size: 5/16"
  • Threads Per Inch: 24
  • Thread Size: 24-Dec
  • Max Material Attachments: 0.455
  • Drill Tap Capacity: .125-.375
  • Tensile Strength: 4,750
  • Torque Strength: 100
  • ICC Approved: No
  • Washer Size: 9/16'' O.D. Bonded
  • Washer Style: Bonded
