TEKS� 1 ABOT MAXISEAL� CL 1/4-14 X 7/8''

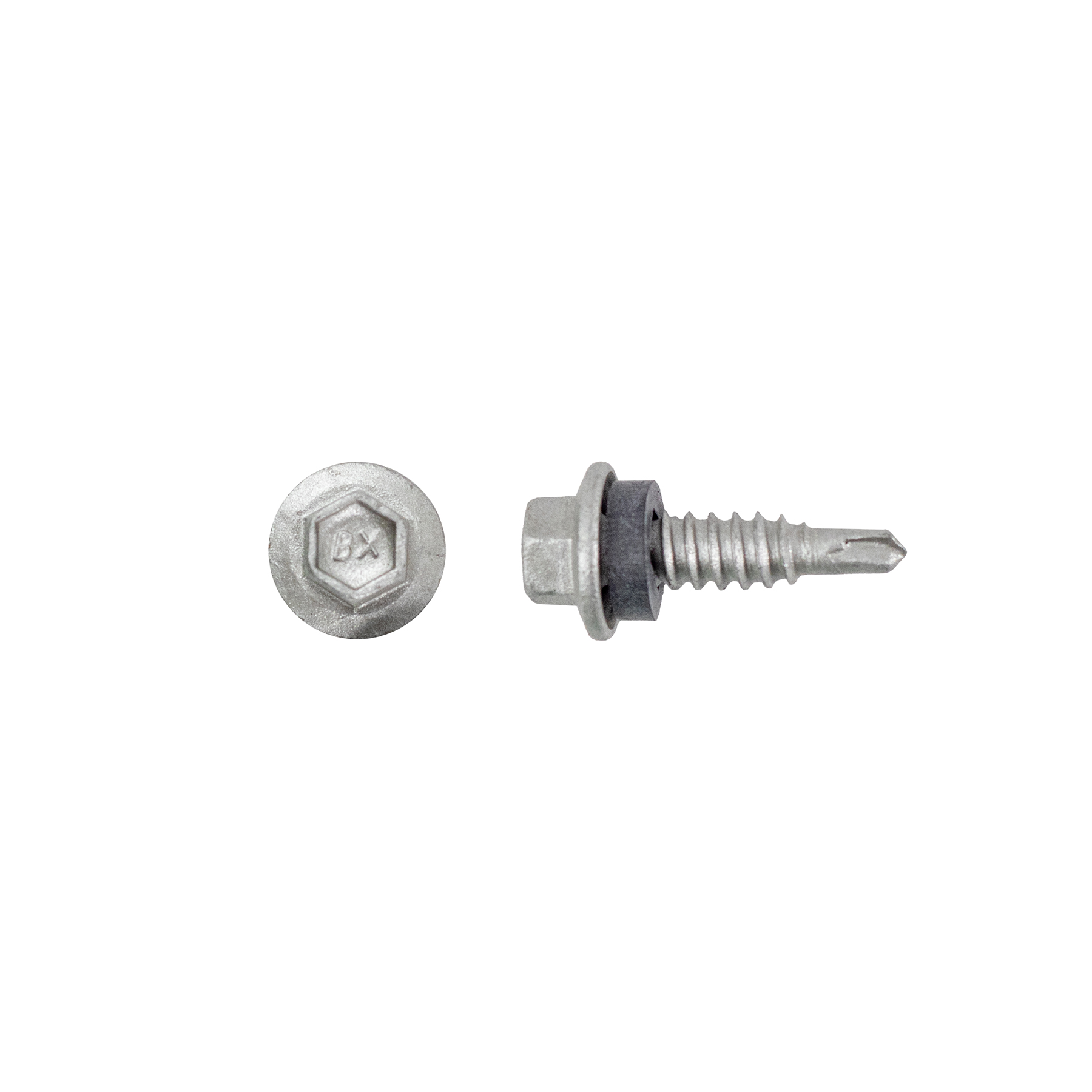

Main image for Teks 1 with Maxiseal Washer
Product Attributes

Part #: 1389000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1389000 1/4-14 x 7/8'' Hex Washer Head #1 Climaseal .036-.095 0.32 3,000 1/4" 7/8" Steel Integral System

Features

  • Controls the EPDM rubber washer for improved in place appearance and increased washer life.
  • Seals when driven at an angle.
  • Optimum pullover resistance.
  • Hex washer head provides excellent driving stability.
  • Point has precise cutting edges to improve drill performance with less effort.
  • Non-walking point provides fast material engagement.
  • Point-to-thread design maximizes pullout performance and minimizes backout.
  • Drills and taps in the broadest range of applications.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.

General Applications & Uses

Applications

  • Securing Corrugated Metal Panels to Wood Framing
  • Installing Metal Trim or Flashing to Wood Structures
  • Attaching Metal Brackets or Straps to Wood in Outdoor Structures
  • Fastening Utility Panels or Enclosures to Wooden Framing Outdoors

Product Details

  • Size: 1/4-14 x 7/8''
  • Product Length (Inches): 7/8"
  • Product Diameter (Inches): 1/4"
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: 5/16'' Drive Socket
  • Country of Origin: TW
  • Paintable: Yes
  • BABA Compliant: No
  • Made In America: No
  • Buy America: No
  • Buy American: No
  • Drill Point: #1
  • Fastener Head Style: Hex Washer Head
  • Head Size: 5/16"
  • Threads Per Inch: 14
  • Thread Size: 1/4/2014
  • Max Material Attachments: 0.32
  • Drill Tap Capacity: .036-.095
  • Tensile Strength: 4,060
  • Torque Strength: 150
  • ICC Approved: No
  • Washer Size: 9/16'' O.D. Integral System
  • Washer Style: Integral System
