TEKS� 3 HWH/BD CL 12-14 X 3''

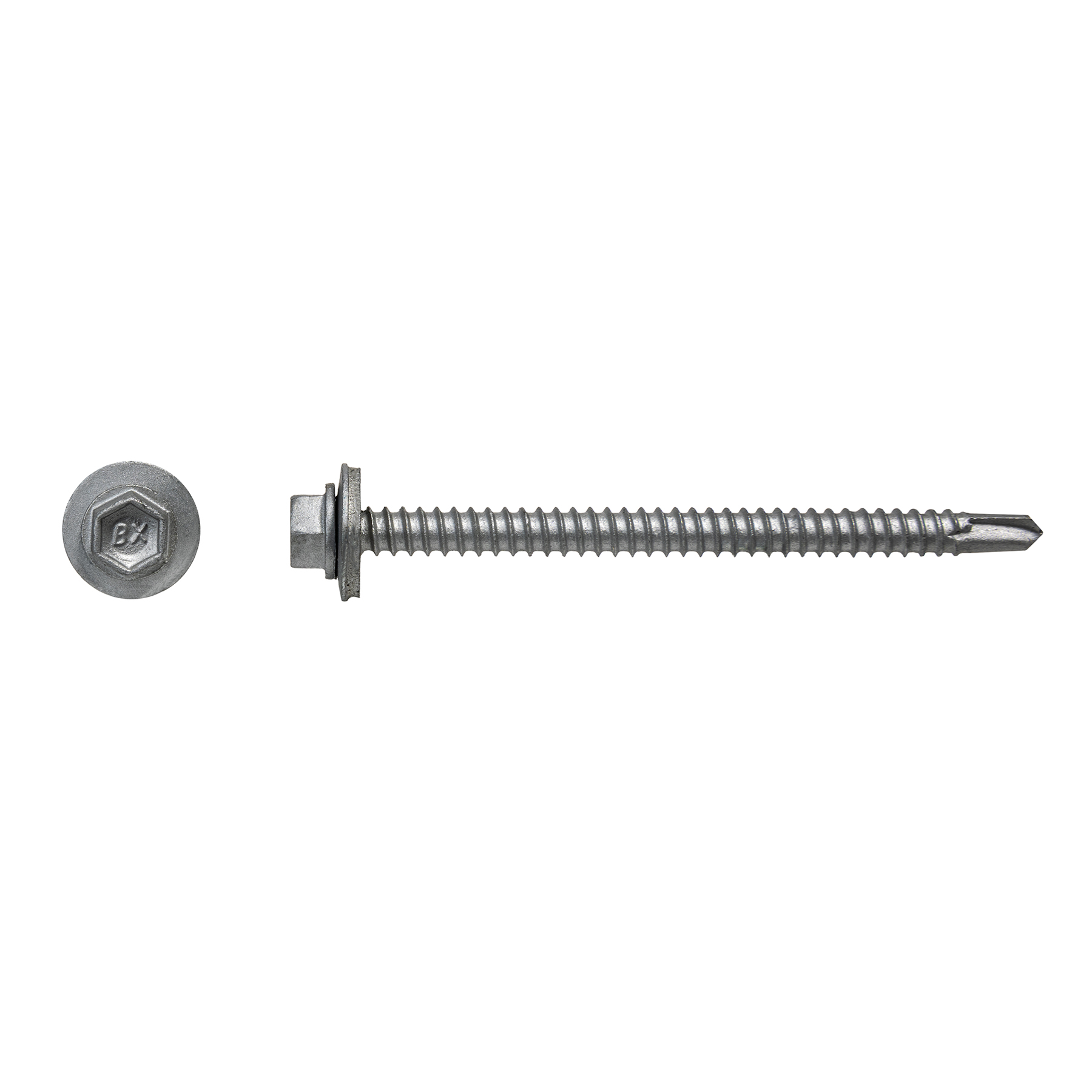

Main image for Teks 3 with Bonded Washer
Product Attributes

Part #: 1333000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1333000 12-14 x 3'' Hex Washer Head #3 Climaseal .036-.210 2.33 1,000 #12 3" Steel Bonded

Features

  • Vulcanized bonding of washer eliminates separation of EPDM from the metal backing.
  • Dual sealing bonded washer prevents leaks.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.
  • Point has precise cutting edges to improve drill performance with less effort.
  • Point-to-thread design maximizes pullout performance and minimizes backout.

General Applications & Uses

Applications

  • Attaching Metal Panels to Light Structural Steel
  • Mounting Flashing and Trim Components
  • HVAC Rooftop Installations
  • Securing Brackets and Hangers to Structural Steel

Product Details

  • Size: 12-14 x 3''
  • Product Length (Inches): 3"
  • Product Diameter (Inches): #12
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: 5/16'' Drive Socket
  • Country of Origin: TW
  • Paintable: No
  • BABA Compliant: No
  • Made In America: No
  • Buy America: No
  • Buy American: No
  • Drill Point: #3
  • Fastener Head Style: Hex Washer Head
  • Head Size: 5/16"
  • Threads Per Inch: 14
  • Thread Size: 14-Dec
  • Max Material Attachments: 2.33
  • Drill Tap Capacity: .036-.210
  • Tensile Strength: 2,778
  • Torque Strength: 92
  • ICC Approved: No
  • Washer Size: 9/16'' O.D. Bonded
  • Washer Style: Bonded
