TEKS� 3 PSD PANCAKE 12-14 X 1-1/2" BULK

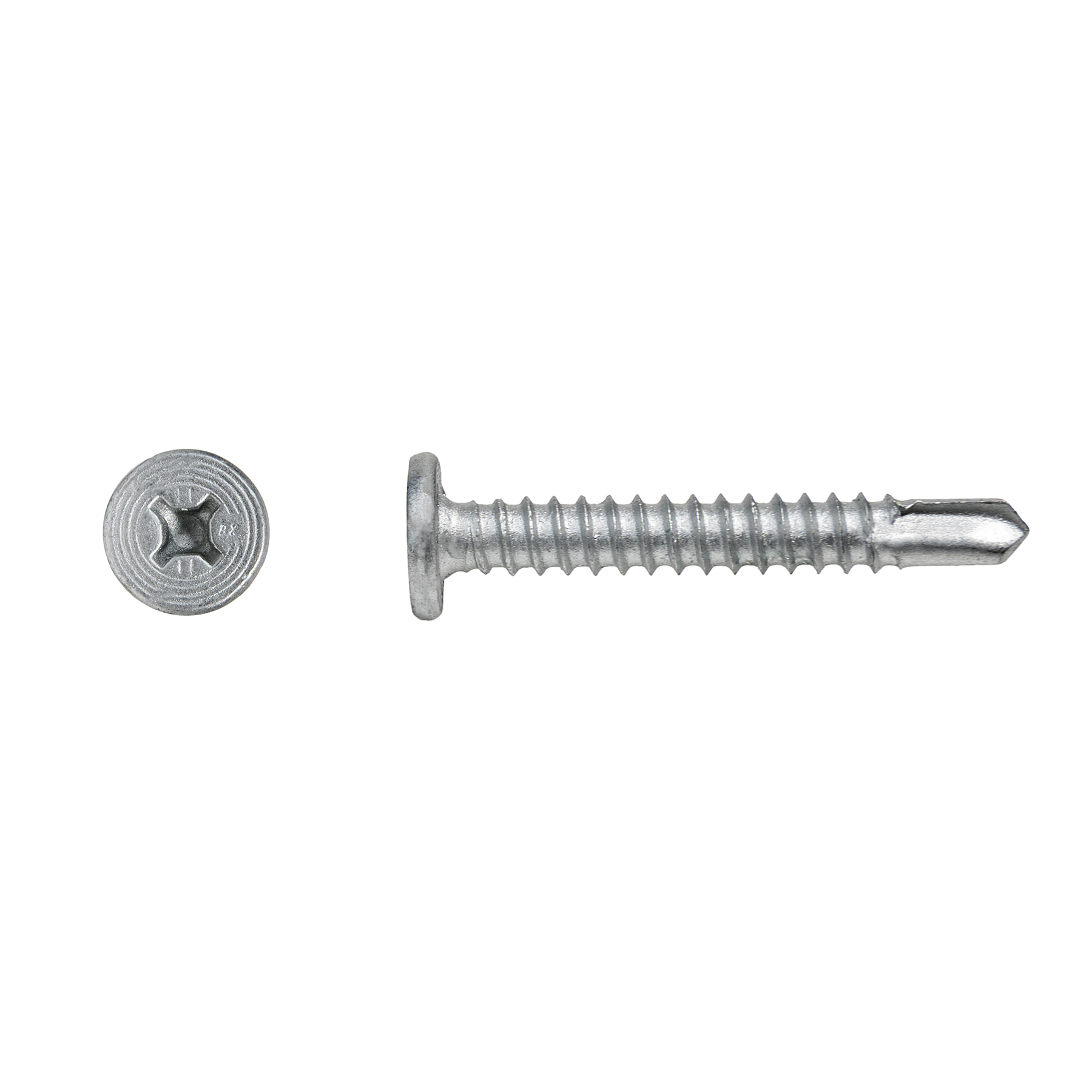

Main image for Teks 3
Product Attributes

Part #: 1279000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1279000 12-14 x 1-1/2'' Pancake #3 Yuken .036-.210 1.05 2,500 #12 1-1/2" Steel N/A

Features

  • Non-walking sharp point for fast material engagement.
  • EPDM bonded washer prevents leaks.
  • Vulcanized bonding of washer eliminates separation of EPDM from the metal backing.
  • High-hat HWH for driving stability.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.

General Applications & Uses

Applications

  • Securing Metal Framing Behind Drywall or Panels
  • Attaching Steel Backing Plates in Walls or Ceilings
  • Mounting Flat Surface Brackets in Low-Clearance Areas
  • Assembling Framing in Data Centers or Clean Rooms

Product Details

  • Size: 12-14 x 1-1/2''
  • Product Length (Inches): 1-1/2"
  • Product Diameter (Inches): #12
  • Material: Steel
  • Finish: Yuken
  • Material Grade: C1022
  • FM Approved: No
  • Installation Tool: Square Drive
  • Country of Origin: US
  • Paintable: No
  • BABA Compliant: Yes
  • Made In America: Yes
  • Buy America: Yes
  • Buy American: Yes
  • Drill Point: #3
  • Fastener Head Style: Pancake
  • Head Size: --
  • Threads Per Inch: 14
  • Thread Size: 14-Dec
  • Max Material Attachments: 1.05
  • Drill Tap Capacity: .036-.210
  • Tensile Strength: 2,778
  • Torque Strength: 92
  • Washer Size: N/A
  • Washer Style: N/A
