TEKS� 3 GRAY CL PSD PANCAKE 12-14 X 3/4" BULK

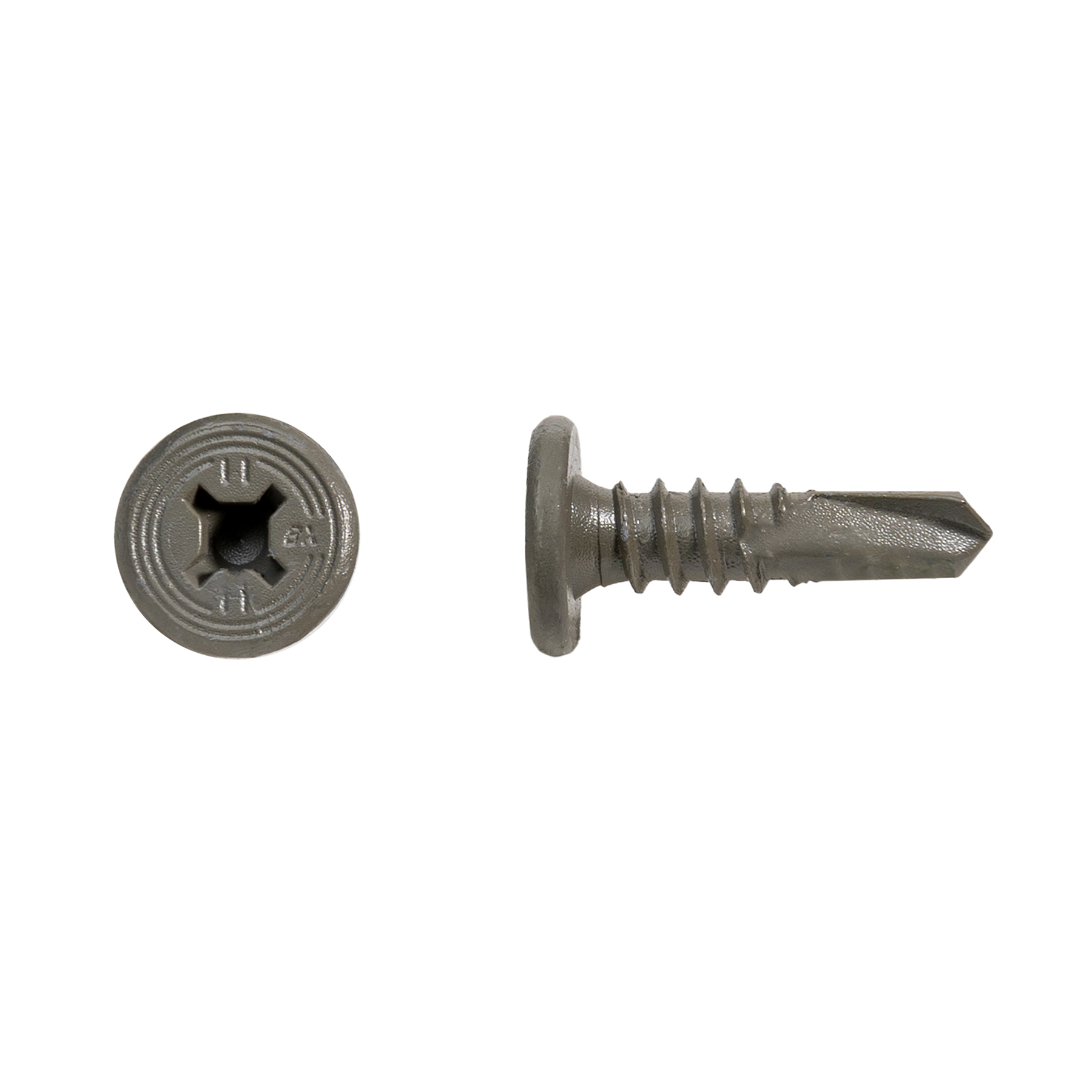

Main image for Teks 3
Product Attributes

Part #: 1278100
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1278100 12-14 x 3/4" Pancake #3 Climaseal .036-.210 0.3 5,000 #12 3/4" Steel N/A

Features

  • Non-walking sharp point for fast material engagement.
  • EPDM bonded washer prevents leaks.
  • Vulcanized bonding of washer eliminates separation of EPDM from the metal backing.
  • High-hat HWH for driving stability.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.

General Applications & Uses

Applications

  • Framing Connections in Pre-Engineered Metal Buildings
  • Assembling Interior Steel Studs and Tracks
  • Mounting Eqiupment Supports and Brackets Indoors
  • Securing Metal Trim and framing in Sheltered Environments

Product Details

  • Size: 12-14 x 3/4"
  • Product Length (Inches): 3/4"
  • Product Diameter (Inches): #12
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • Installation Tool: Square Drive
  • Country of Origin: TW
  • Paintable: No
  • BABA Compliant: No
  • Made In America: No
  • Buy America: No
  • Buy American: No
  • Drill Point: #3
  • Fastener Head Style: Pancake
  • Head Size: --
  • Threads Per Inch: 14
  • Thread Size: 14-Dec
  • Max Material Attachments: 0.3
  • Drill Tap Capacity: .036-.210
  • Tensile Strength: 2,778
  • Torque Strength: 92
  • Washer Size: N/A
  • Washer Style: N/A
