TRUGRIP� SHARP HWH CL 9-15 X 1-1/2''

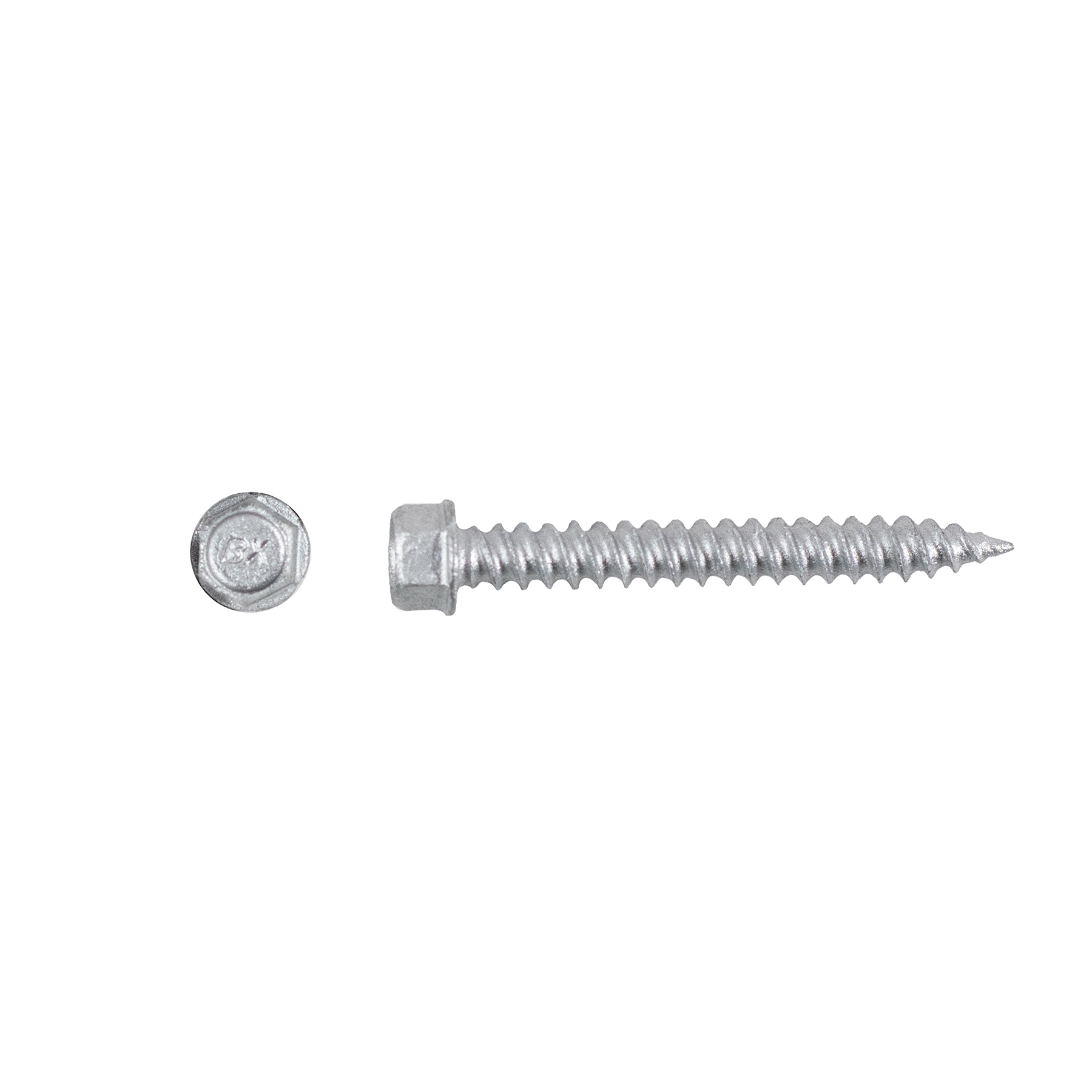

Main image for Trugrip
Product Attributes

Part #: 1272000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Length Diameter Material Washer
1272000 9-15 x 1-1/2'' Hex Washer Head Sharp Climaseal .012-.048 0.75 4,000 1-1/2" #9 Steel N/A

Features

  • Non-walking sharp point for fast material engagement.
  • EPDM bonded washer prevents leaks.
  • Vulcanized bonding of washer eliminates separation of EPDM from the metal backing.
  • High-hat HWH for driving stability.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.

General Applications & Uses

Applications

  • Framing Connections in Pre-Engineered Metal Buildings
  • Assembling Interior Steel Studs and Tracks
  • Mounting Eqiupment Supports and Brackets Indoors
  • Securing Metal Trim and framing in Sheltered Environments

Product Details

  • Size: 9-15 x 1-1/2''
  • Product Length (Inches): 1-1/2"
  • Product Diameter (Inches): #9
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: 1/4'' Drive Socket
  • Country of Origin: TW
  • Paintable: No
  • BABA Compliant: No
  • Made In America: No
  • Buy America: No
  • Buy American: No
  • Drill Point: Sharp
  • Fastener Head Style: Hex Washer Head
  • Head Size: 1/4"
  • Threads Per Inch: 15
  • Thread Size: 15-Sep
  • Max Material Attachments: 0.75
  • Drill Tap Capacity: .012-.048
  • Tensile Strength: 1,800
  • Torque Strength: 50
  • ICC Approved: No
  • Washer Size: N/A
  • Washer Style: N/A
