TEKS� 5.0 SCOTS CL 12-24 X 2

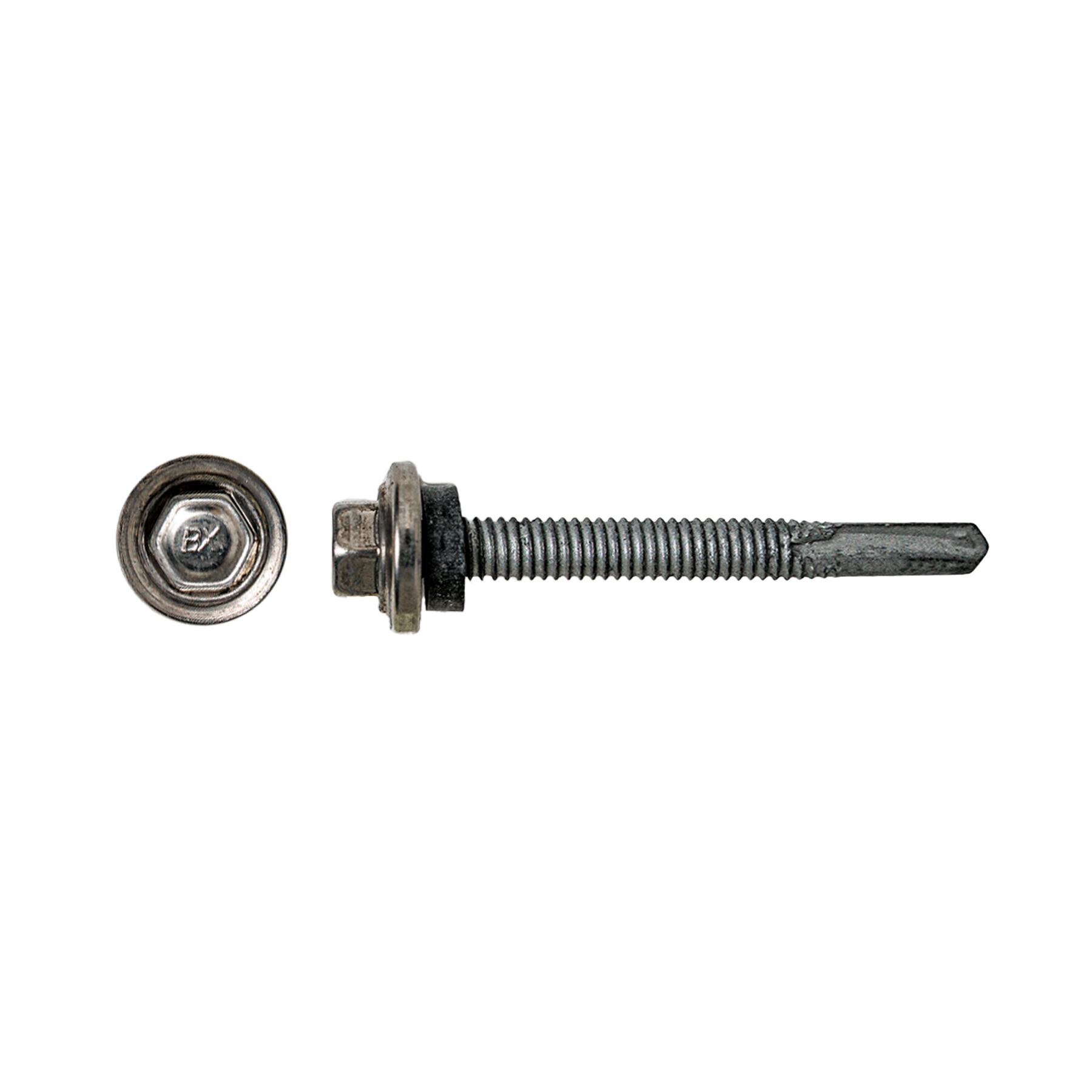

Main image for Teks� 5.0 with Scots� Washer
Product Attributes

Part #: 1263000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1263000 12-24X2" Hex Washer Head #5.0 0.125-0.500 1.075 1,500 #12 2" Steel N/A

Features

  • Non-walking sharp point for fast material engagement.
  • EPDM bonded washer prevents leaks.
  • Vulcanized bonding of washer eliminates separation of EPDM from the metal backing.
  • High-hat HWH for driving stability.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.
  • Climaseal� finish provides excellent corrosion resistance and lower tapping torque.

General Applications & Uses

Applications

  • Panel over blanket insulation to steel frame
  • Roof curb to structural steel

Product Details

  • Size: 12-24X2"
  • Product Length (Inches): 2"
  • Product Diameter (Inches): #12
  • Material: Steel
  • FM Approved: No
  • Installation Tool: 5/16'' Drive Socket
  • Country of Origin: US
  • Paintable: No
  • BABA Compliant: No
  • Made In America: Yes
  • Buy America: No
  • Buy American: No
  • Drill Point: #5.0
  • Fastener Head Style: Hex Washer Head
  • Head Size: 5/16"
  • Threads Per Inch: 24
  • Thread Size: 0
  • Max Material Attachments: 1.075
  • Drill Tap Capacity: 0.125-0.500
  • Tensile Strength: 4,750
  • Torque Strength: 100
  • Washer Size: N/A
  • Washer Style: N/A
