TEKS� 3 MAXISEAL SQ LP CL 1/4-14 X 1

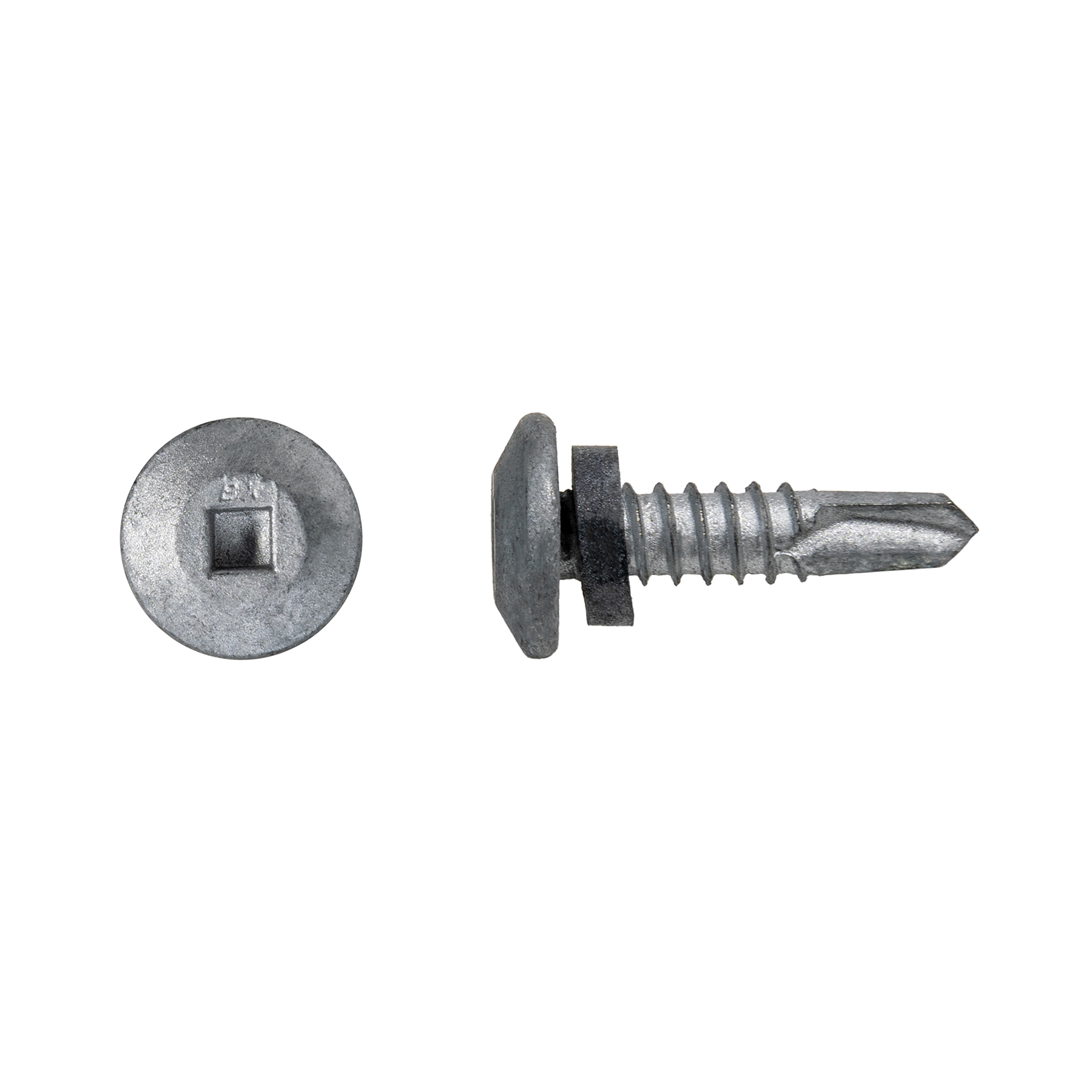

Main image for Teks 3
Product Attributes

Part #: 1244000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1244000 1/4-14 x 1" Pancake Head #3 Climaseal .036-.095 0.31 1,500 1/4" 1" Steel N/A

Features

  • Non-walking sharp point for fast material engagement.
  • EPDM bonded washer prevents leaks.
  • Vulcanized bonding of washer eliminates separation of EPDM from the metal backing.
  • High-hat HWH for driving stability.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.

General Applications & Uses

Applications

  • Securing Metal Roofing and Siding Panels to Steel Purlins
  • Attaching Trim, Flashing, and Facia to Steel Structures
  • Mounting Exterior Equipment Enclosures or Backets
  • Fastenign Roof Accessories to Framing Members

Product Details

  • Size: 1/4-14 x 1"
  • Product Length (Inches): 1"
  • Product Diameter (Inches): 1/4"
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • Installation Tool: #3 Square Drive
  • Country of Origin: TW
  • Paintable: No
  • BABA Compliant: No
  • Made In America: No
  • Buy America: No
  • Buy American: No
  • Drill Point: #3
  • Fastener Head Style: Pancake Head
  • Head Size: --
  • Threads Per Inch: 14
  • Thread Size: 1/4/2014
  • Max Material Attachments: 0.31
  • Drill Tap Capacity: .036-.095
  • Tensile Strength: 4,060
  • Torque Strength: 150
  • Washer Size: N/A
  • Washer Style: N/A
