TEKS� TYPE AB SCOTS� CL 17-14 X 1''

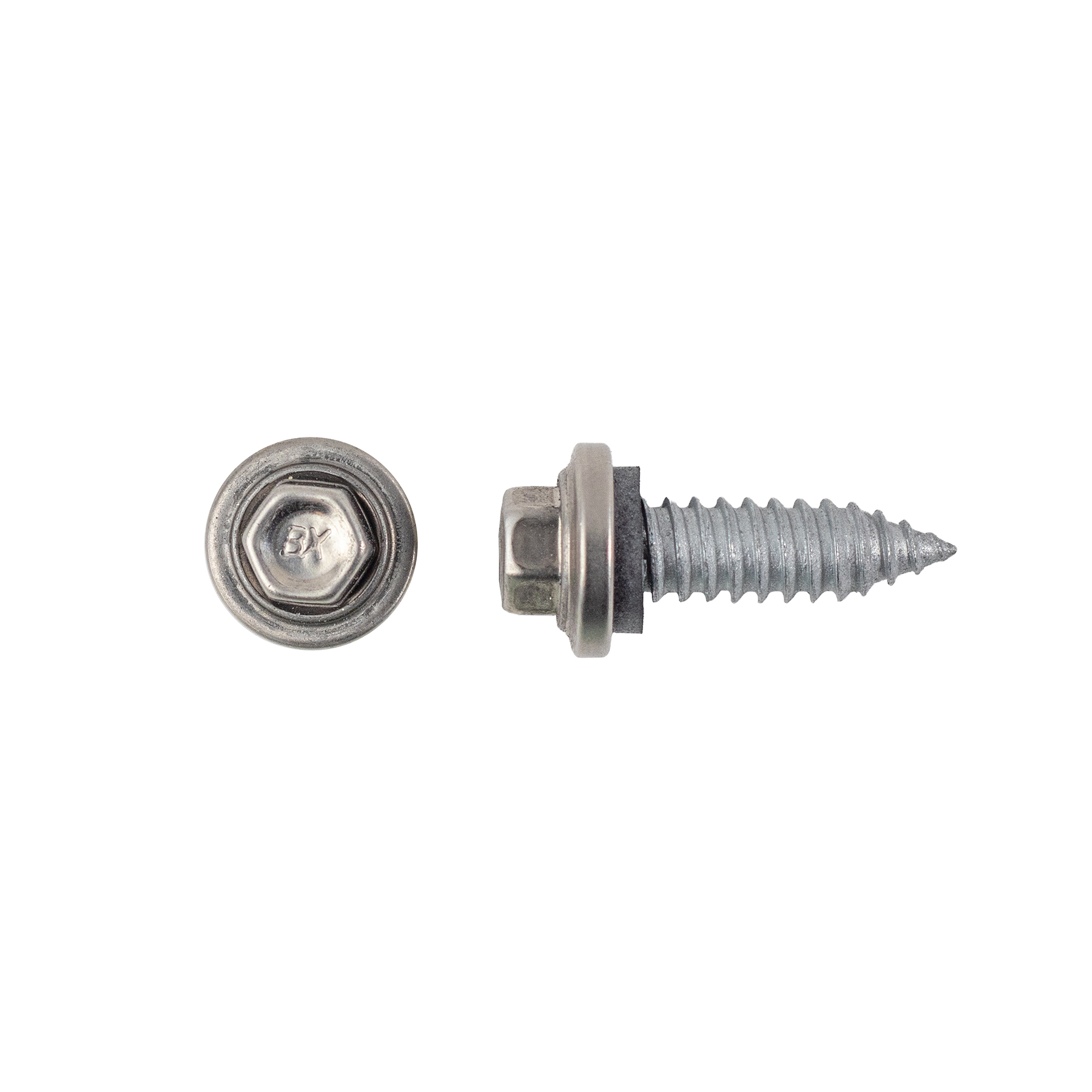

Main image for Scots Tapper
Product Attributes

Part #: 1180225
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1180225 17-14 x 1'' Hex Washer Head Type AB Climaseal N/A 0.686 1,500 #17 1" Steel Integral System

Features

  • For improved appearance and extra life an integral design controls the EPDM rubber washer.
  • Combines 300 series stainless steel exterior with the strength of carbon steel.
  • 300 Series stainless most preferred for galvalume long life panels.
  • Maximum sealing and corrosion protection.
  • Point has precise cutting edges to improve drill performance with less effort.
  • Non-walking point provides fast material engagement.
  • Point to thread design maximizes pullout performance and minimizes backout.
  • Drills and taps in the broadest range of applications.

General Applications & Uses

Applications

  • Replacement screw for #12 and 1/4" diameter fasteners
  • Roof curb to structural steel.
  • Standing seam roof system endlaps.
  • Stitch roof and wall sidelaps.
  • #17 Diameter replacement screw for stripped #12 and 1/4" diameter fasteners.

Product Details

  • Size: 17-14 x 1''
  • Product Length (Inches): 1"
  • Product Diameter (Inches): #17
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: 5/16'' Drive Socket
  • Country of Origin: TW
  • Paintable: No
  • BABA Compliant: No
  • Made In America: No
  • Buy America: No
  • Buy American: No
  • Drill Point: Type AB
  • Fastener Head Style: Hex Washer Head
  • Head Size: 5/16"
  • Threads Per Inch: 14
  • Thread Size: 17-14
  • Max Material Attachments: 0.686
  • Drill Tap Capacity: N/A
  • Tensile Strength: 5,300
  • Torque Strength: 180
  • ICC Approved: No
  • Washer Size: 7/16'' O.D. Integral System
  • Washer Style: Integral System
