TEKS� 4 HWH CL ACR 1/4-20 X 1-1/8''

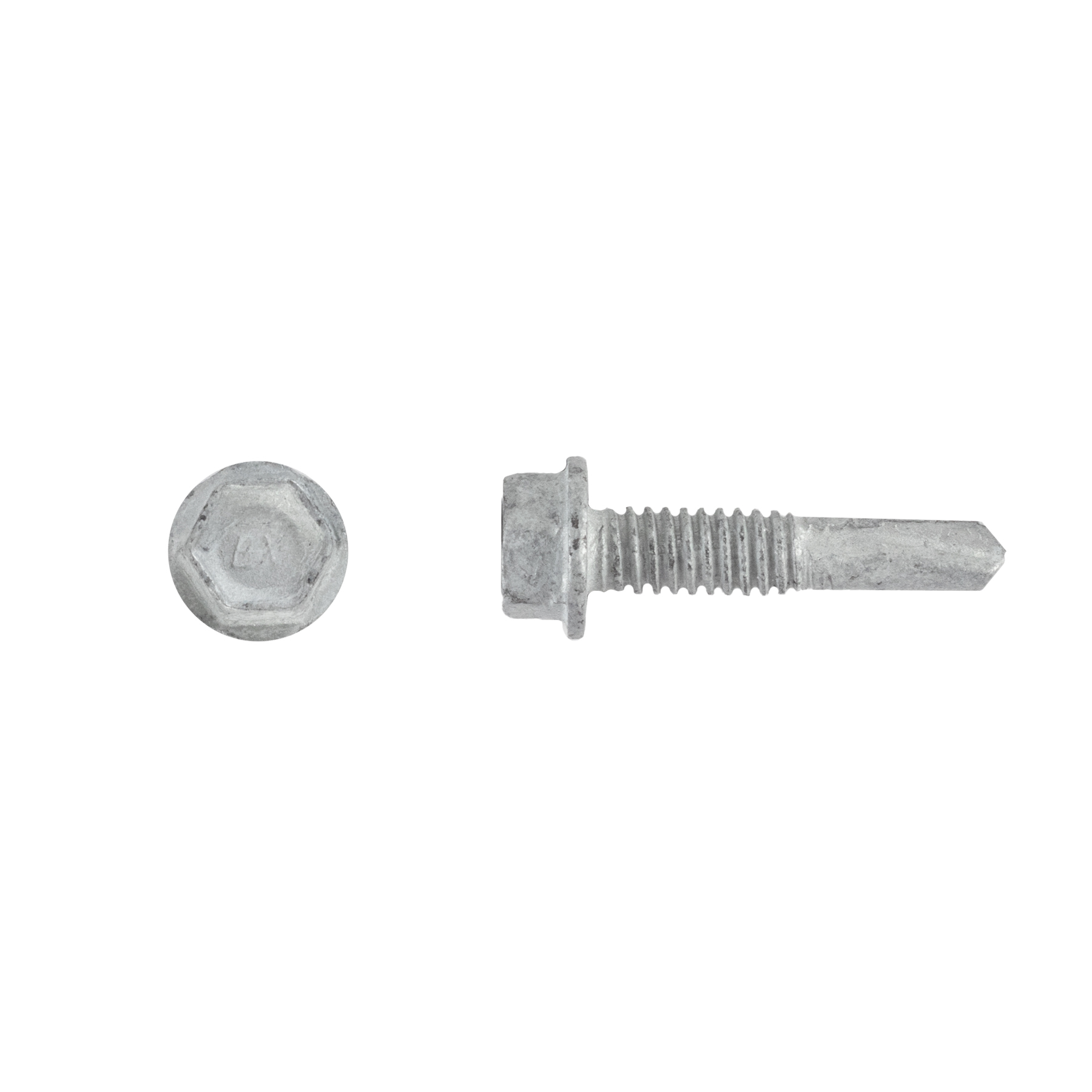

Main image for Teks Select 4
Product Attributes

Part #: 1124000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1124000 1/4-20 x 1-1/8'' Hex Washer Head #4 Climaseal ACR .210-.312 0.5 2,000 1/4" 1-1/8" Steel N/A

Features

  • Selectively hardened to eliminate the effects of hydrogen assisted stress corrosion (HASCC).
  • Climaseal advanced corrosion resistance coating (ACR) provides the best corrosion resistance available.
  • Drill point and thread design enable the Teks fastener to drill and keep with fewer stalls.

General Applications & Uses

Applications

  • Securing Metal Panels to Structural Steel in Pre-Engineered Metal Buildings
  • Attaching Framing Members Like Purlins and Grits
  • Installing Support Brackets or Equipment Mounts to Steel Structures
  • Mounting Exterior Accessories like Trim, Flashing, or Louvers
  • Anchoring metal clups to metal structures for masonry facades.
  • Solar system attachment.

Product Details

  • Size: 1/4-20 x 1-1/8''
  • Product Length (Inches): 1-1/8"
  • Product Diameter (Inches): 1/4"
  • Material: Steel
  • Finish: Climaseal ACR
  • Material Grade: C4037
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: 3/8'' Drive Socket
  • Country of Origin: US
  • Paintable: No
  • BABA Compliant: No
  • Made In America: Yes
  • Buy America: No
  • Buy American: No
  • Drill Point: #4
  • Fastener Head Style: Hex Washer Head
  • Head Size: 3/8"
  • Threads Per Inch: 20
  • Thread Size: 1/4/2020
  • Max Material Attachments: 0.5
  • Drill Tap Capacity: .210-.312
  • Tensile Strength: 4,683
  • Torque Strength: 140
  • ICC Approved: ESR-3223
  • Los Angeles Residential Code: Yes
  • California Building Code: Yes
  • California Residential Code: Yes
  • Florida Building Code: Yes
  • Florida Residential Code: Yes
  • Washer Size: N/A
  • Washer Style: N/A
