TEKS� 4 PFH GRAY CL 1/4-20 X 3'' W/WINGS

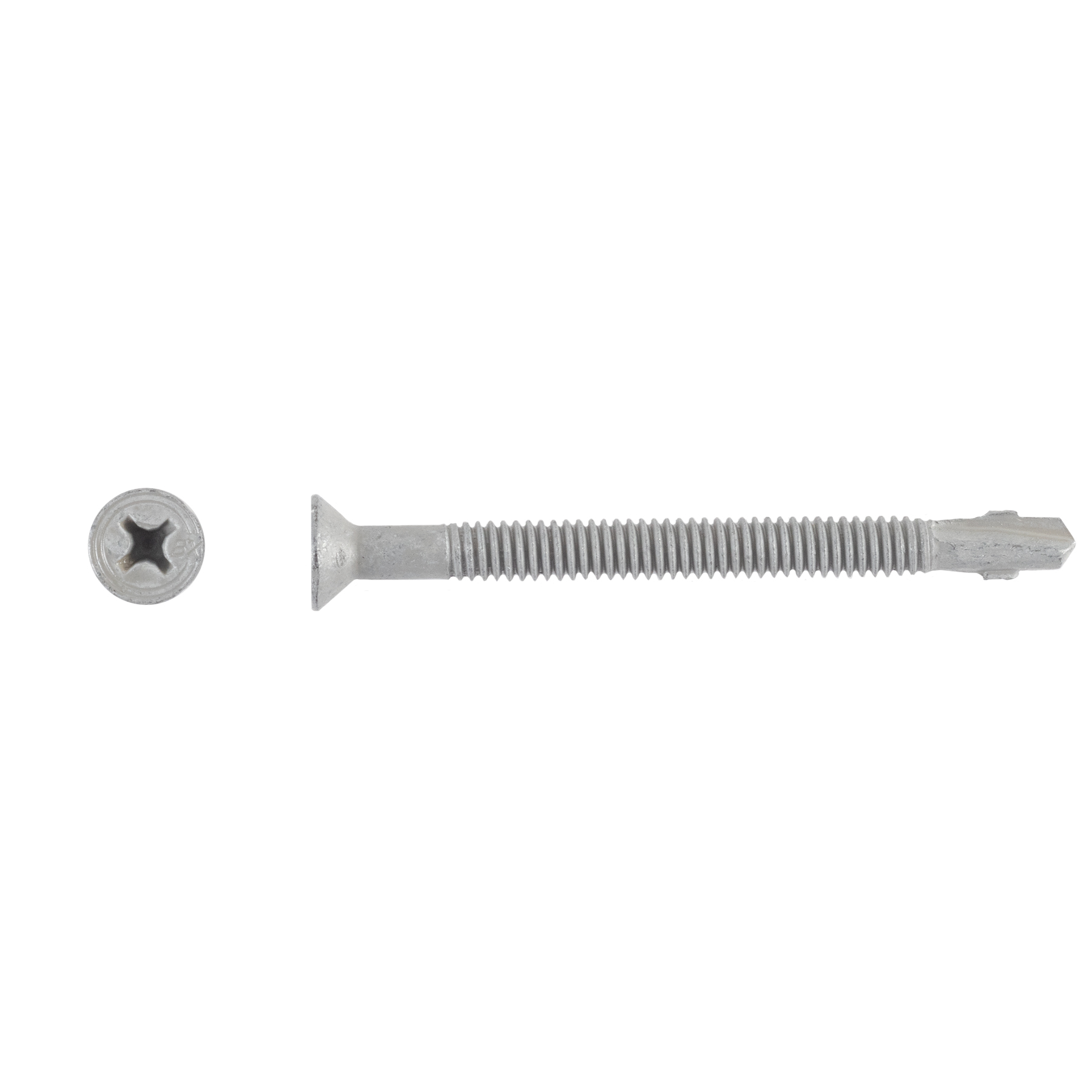

Main image for Teks 4
Product Attributes

Part #: 1096000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Length Diameter Material Washer
1096000 1/4-20 x 3'' Flat Head #4 Gray Climaseal .125-.250 3/4" - 2" 1,000 3" 1/4" Steel N/A

Features

  • Point has precise cutting edges to improve drill performance with less effort.
  • Special winged fasteners ream a hole in wood preventing thread engagement during drilling.
  • Wafer head design has a large bearing surface ideal for plywood.
  • Flat head deisgn countersinks and seats flush in wood.
  • Gay Spex finish provides excellent corrosion resistance and lower tapping torque.
  • Compatible with ACQ treated wood.

General Applications & Uses

Applications

  • Attaching Wood Nailers or Blocking to Steel Framing
  • Securing Wood Furring Strips to Steel Studs or Joists
  • Installing Wood Framing on Metal Trailers or Utility Structures
  • Mounting Wooden Bracing or Supports to Steel Beams

Product Details

  • Size: 1/4-20 x 3''
  • Product Length (Inches): 3"
  • Product Diameter (Inches): 1/4"
  • Material: Steel
  • Finish: Gray Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: #3 Phillips Bit
  • Country of Origin: US
  • Paintable: No
  • BABA Compliant: Yes
  • Made In America: Yes
  • Buy America: Yes
  • Buy American: Yes
  • Drill Point: #4
  • Fastener Head Style: Flat Head
  • Head Size: --
  • Threads Per Inch: 20
  • Thread Size: 1/4/2020
  • Max Material Attachments: 3/4" - 2"
  • Drill Tap Capacity: .125-.250
  • Tensile Strength: 3,860
  • Torque Strength: 168
  • ICC Approved: No
  • Washer Size: N/A
  • Washer Style: N/A
