TEKS� 4 HWH CL 12-24 X 7/8''

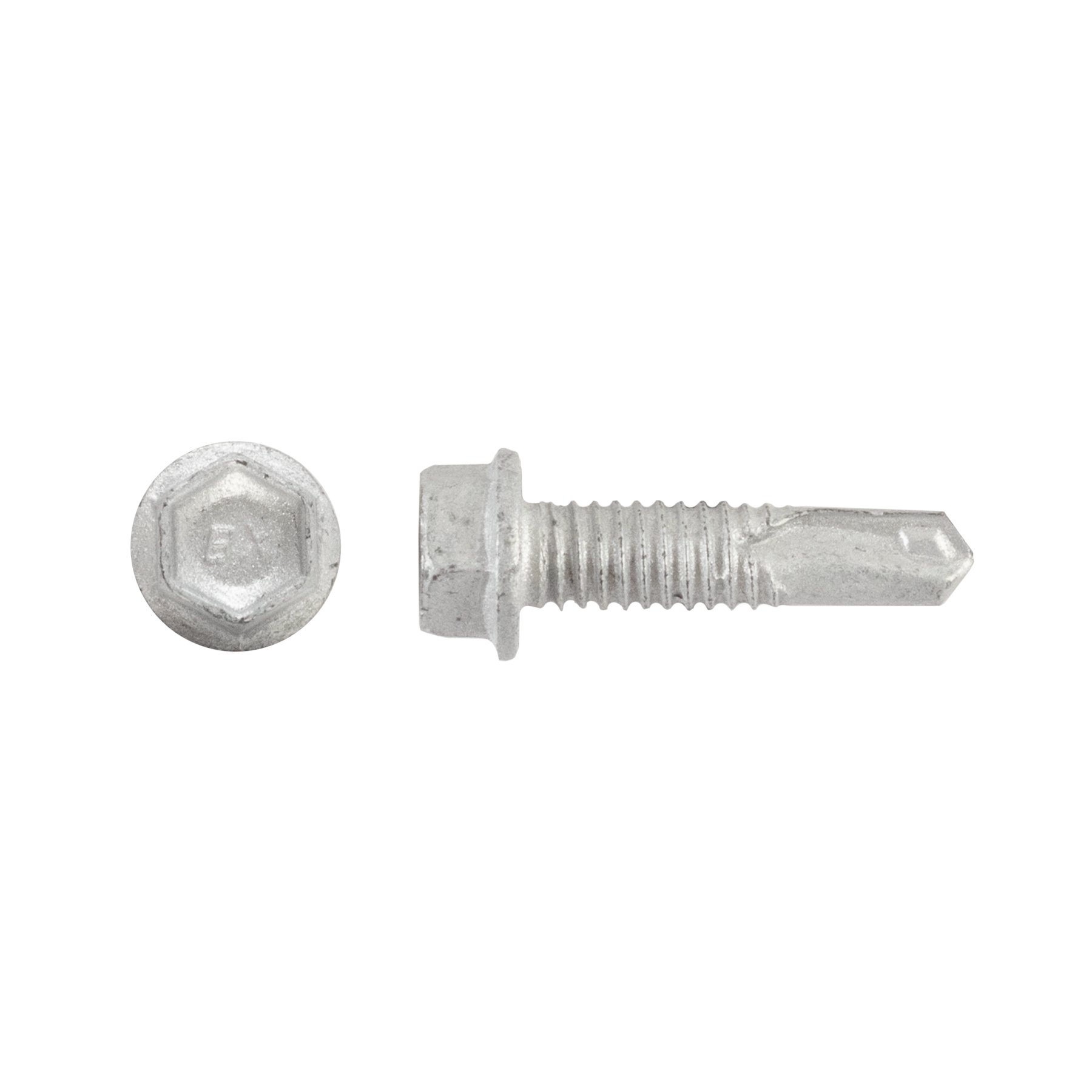

Main image for Teks 4
Product Attributes

Part #: 1088000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1088000 12-24 x 7/8'' Hex Washer Head #4 Climaseal .125-.500 0.325 5,000 #12 7/8" Steel N/A

Features

  • Unique double fluted point has precise cutting edges to improve drill performance in 1/4" through 1/2" steel.
  • Engineered for fast drilling and smooth tapping with less effort.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.
  • Attachments up to 7.2" of material including 1/2" steel.
  • 1/4 Diameter has notched threads to reduce tapping torque.

General Applications & Uses

Applications

  • Securing Metal Panels to Structural Steel in Pre-Engineered Metal Buildings
  • Attaching Framing Members Like Purlins and Grits
  • Installing Support Brackets or Equipment Mounts to Steel Structures
  • Mounting Exterior Accessories like Trim, Flashing, or Louvers
  • Longer length fasteners can be used in retrofit clip and sheet applications.

Product Details

  • Size: 12-24 x 7/8''
  • Product Length (Inches): 7/8"
  • Product Diameter (Inches): #12
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: Yes
  • UL Approved: No
  • Installation Tool: 5/16'' Drive Socket
  • Country of Origin: US
  • Paintable: No
  • BABA Compliant: Yes
  • Made In America: Yes
  • Buy America: Yes
  • Buy American: Yes
  • Drill Point: #4
  • Fastener Head Style: Hex Washer Head
  • Head Size: 5/16"
  • Threads Per Inch: 24
  • Thread Size: 24-Dec
  • Max Material Attachments: 0.325
  • Drill Tap Capacity: .125-.500
  • Tensile Strength: 4,750
  • Torque Strength: 100
  • ICC Approved: ESR-1976, ESR-3270
  • Los Angeles Residential Code: Yes
  • Florida Building Code: Yes
  • Florida Residential Code: Yes
  • Washer Size: N/A
  • Washer Style: N/A
