TEKS� 3 PWH GRAY CL 10-24 X 1''

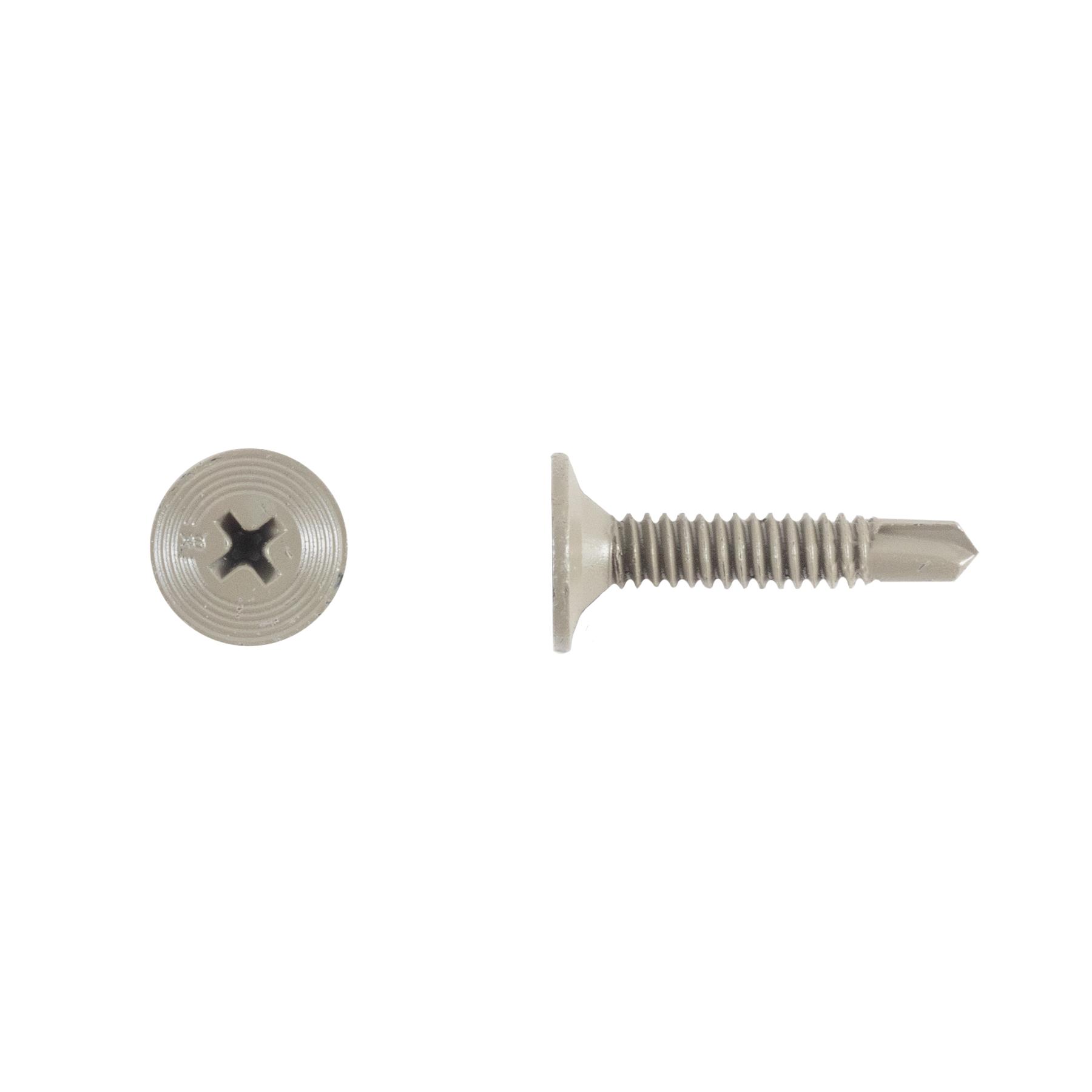

Main image for Teks 3
Product Attributes

Part #: 1079000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Length Diameter Material Washer
1079000 10-24 x 1'' Phillips Wafer Head #3 Gray Climaseal .030-.175 1/4" - 1/2" 5,000 1" #10 Steel N/A

Features

  • Point has precise cutting edges to improve drill performance with less effort.
  • Special winged fasteners ream a hole in wood preventing thread engagement during drilling.
  • Wafer head design has a large bearing surface ideal for plywood.
  • Flat head deisgn countersinks and seats flush in wood.
  • Gay Spex finish provides excellent corrosion resistance and lower tapping torque.
  • Compatible with ACQ treated wood.

General Applications & Uses

Applications

  • Attaching Wood Nailers or Blocking to Steel Framing
  • Securing Wood Furring Strips to Steel Studs or Joists
  • Installing Wood Framing on Metal Trailers or Utility Structures
  • Mounting Wooden Bracing or Supports to Steel Beams

Product Details

  • Size: 10-24 x 1''
  • Product Length (Inches): 1"
  • Product Diameter (Inches): #10
  • Material: Steel
  • Finish: Gray Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: #2 Phillips Bit
  • Country of Origin: TW
  • Paintable: No
  • BABA Compliant: No
  • Made In America: No
  • Buy America: No
  • Buy American: No
  • Drill Point: #3
  • Fastener Head Style: Phillips Wafer Head
  • Head Size: --
  • Threads Per Inch: 24
  • Thread Size: 24-Oct
  • Max Material Attachments: 1/4" - 1/2"
  • Drill Tap Capacity: .030-.175
  • Tensile Strength: 2,702
  • Torque Strength: 65
  • ICC Approved: No
  • Washer Size: N/A
  • Washer Style: N/A
