TEKS� 5 HWH CL 1/4-28 X 4''

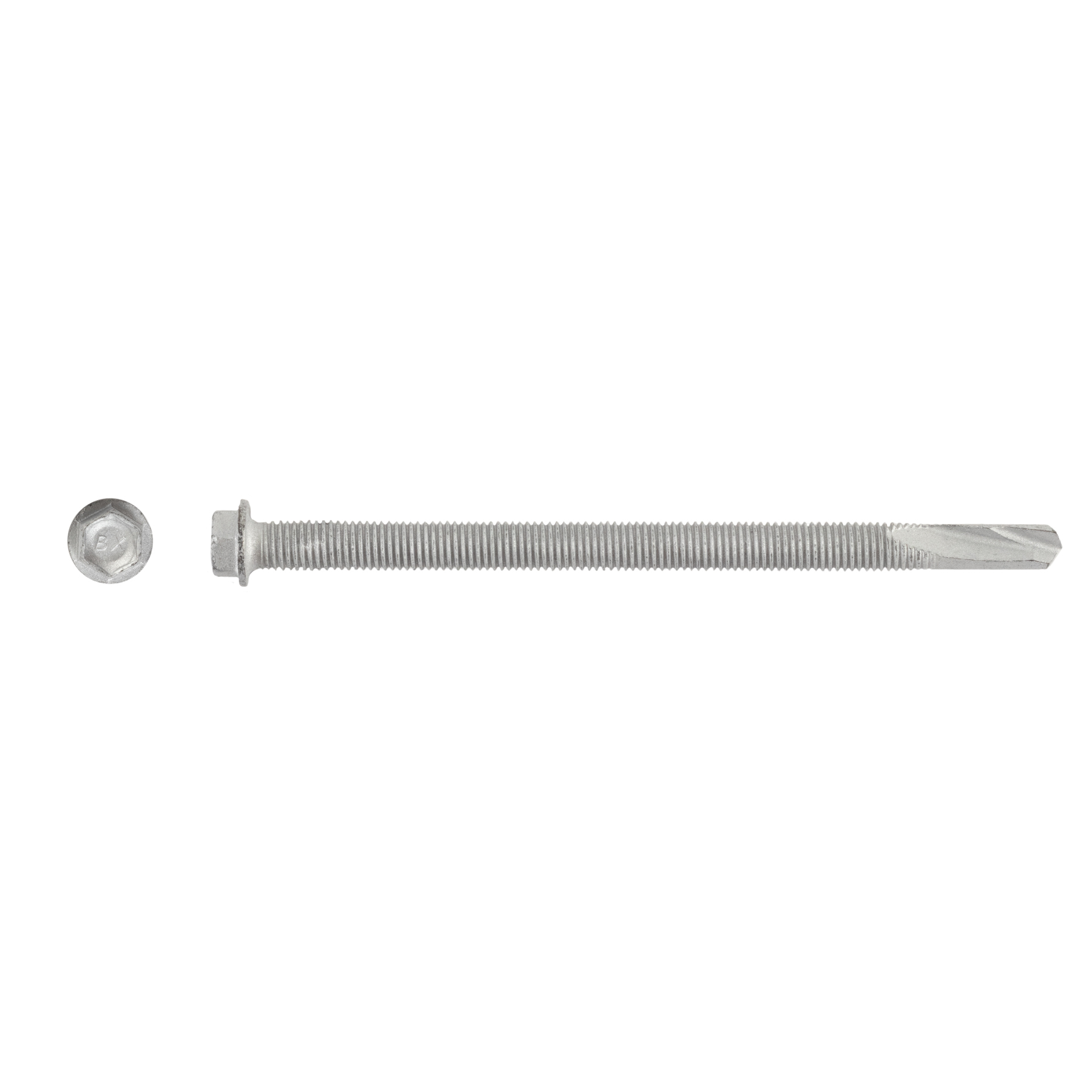

Main image for Teks 5
Product Attributes

Part #: 1075000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1075000 1/4-28 x 4'' Hex Washer Head #5 Climaseal .125-.500 3.15 500 1/4" 4" Steel N/A

Features

  • Unique double fluted point has precise cutting edges to improve drill performance in 1/4" through 1/2" steel.
  • Engineered for fast drilling and smooth tapping with less effort.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.
  • Attachments up to 7.2" of material including 1/2" steel.
  • 1/4 Diameter has notched threads to reduce tapping torque.

General Applications & Uses

Applications

  • Attaching Heavy Steel Brackets to Structural Steel
  • Securing Metal Decking to Steel Frame
  • Fastening Rooftop Mechanical Curbs and Frames
  • Assembling Steel Framing in Pre-Engineered Metal Buildings
  • Longer length fasteners can be used in retrofit clip and sheet applications.

Product Details

  • Size: 1/4-28 x 4''
  • Product Length (Inches): 4"
  • Product Diameter (Inches): 1/4"
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: 5/16'' Drive Socket
  • Country of Origin: US
  • Paintable: No
  • BABA Compliant: Yes
  • Made In America: Yes
  • Buy America: Yes
  • Buy American: Yes
  • Drill Point: #5
  • Fastener Head Style: Hex Washer Head
  • Head Size: 5/16"
  • Threads Per Inch: 28
  • Thread Size: 1/4/2028
  • Max Material Attachments: 3.15
  • Drill Tap Capacity: .125-.500
  • Tensile Strength: 5,577
  • Torque Strength: 234
  • ICC Approved: ESR-1976
  • Los Angeles Residential Code: Yes
  • Florida Building Code: Yes
  • Florida Residential Code: Yes
  • Washer Size: N/A
  • Washer Style: N/A
