TEKS� 3 MAXISEAL� CL 12-14 X 1''

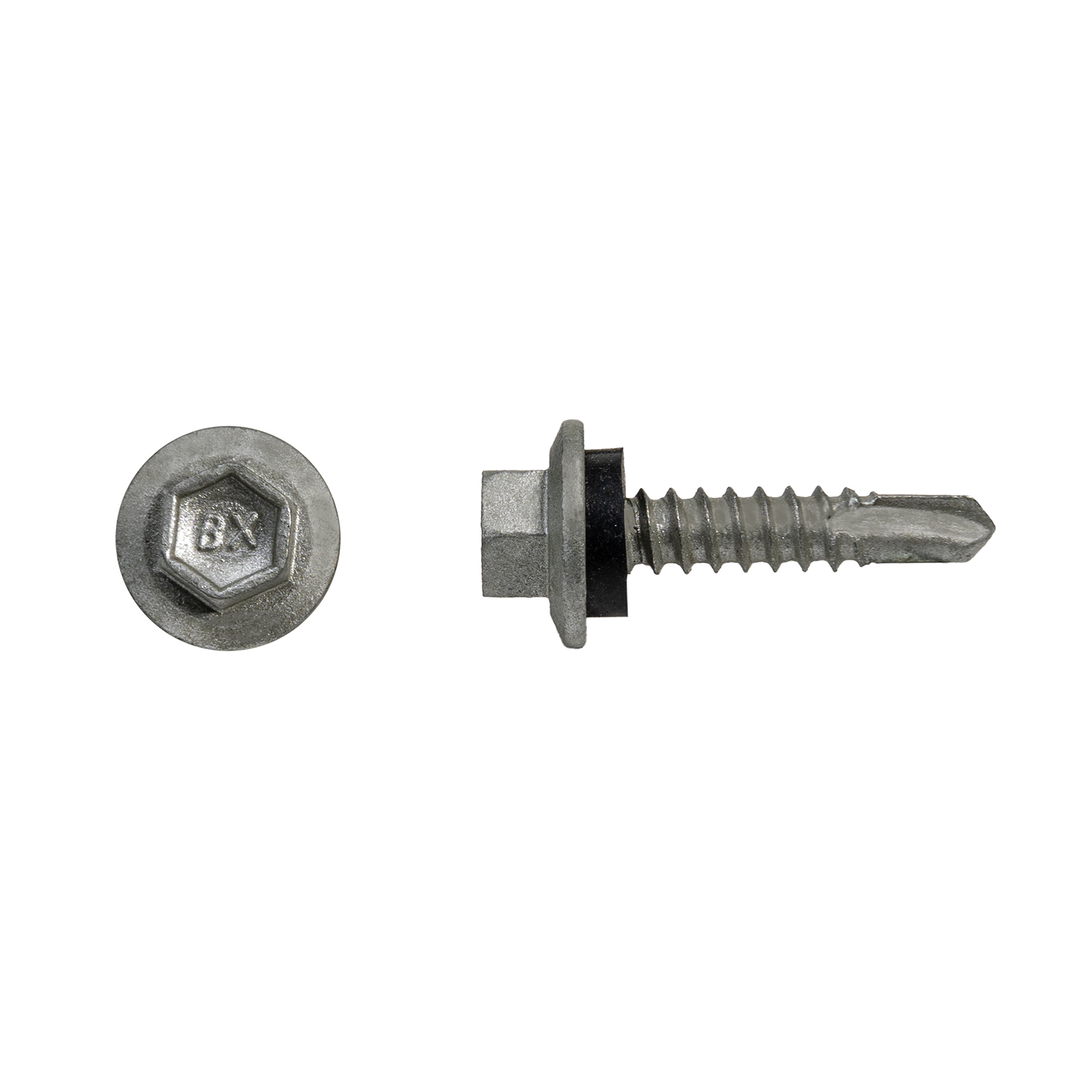

Main image for Teks 3 with Maxiseal Washer
Product Attributes

Part #: 1026000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1026000 12-14 x 1'' Hex Washer Head #3 Climaseal .036-.210 0.49 2,500 #12 1" Steel Integral System

Features

  • Controls the EPDM rubber washer for improved in place appearance and increased washer life.
  • Seals when driven at an angle.
  • Optimum pullover resistance.
  • Hex washer head provides excellent driving stability.
  • Point has precise cutting edges to improve drill performance with less effort.
  • Non-walking point provides fast material engagement.
  • Point-to-thread design maximizes pullout performance and minimizes backout.
  • Drills and taps in the broadest range of applications.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.

General Applications & Uses

Applications

  • Securing Metal Roofing and Siding Panels to Steel Purlins
  • Attaching Trim, Flashing, and Facia to Steel Structures
  • Mounting Exterior Equipment Enclosures or Backets
  • Fastenign Roof Accessories to Framing Members

Product Details

  • Size: 12-14 x 1''
  • Product Length (Inches): 1"
  • Product Diameter (Inches): #12
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: 5/16'' Drive Socket
  • Country of Origin: TW
  • Paintable: Yes
  • BABA Compliant: No
  • Made In America: No
  • Buy America: No
  • Buy American: No
  • Drill Point: #3
  • Fastener Head Style: Hex Washer Head
  • Head Size: 5/16"
  • Threads Per Inch: 14
  • Thread Size: 14-Dec
  • Max Material Attachments: 0.49
  • Drill Tap Capacity: .036-.210
  • Tensile Strength: 2,778
  • Torque Strength: 92
  • ICC Approved: No
  • Washer Size: 9/16'' O.D. Integral System
  • Washer Style: Integral System
