TEKS� 4 HWH/BD CL 12-24 X 7/8''

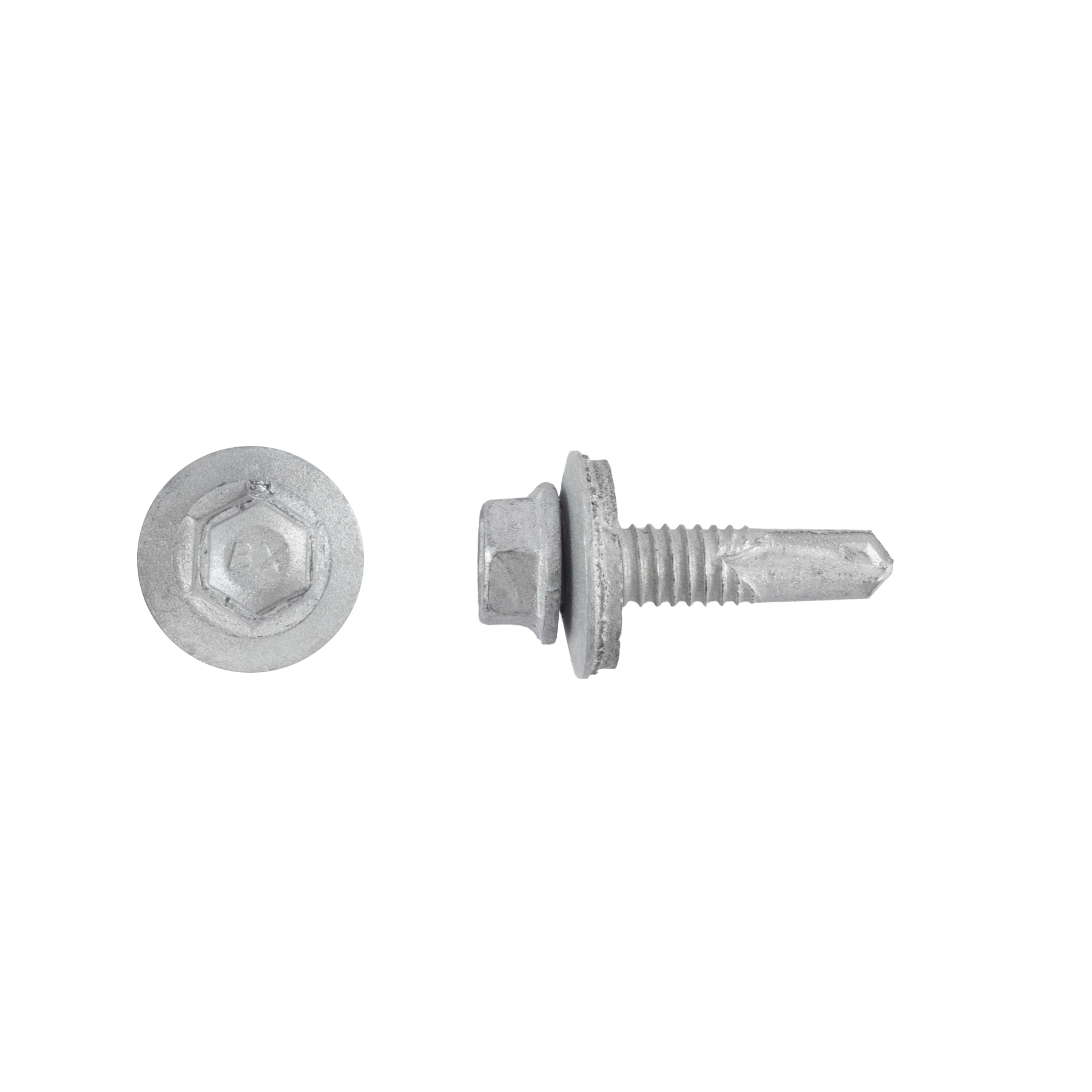

Main image for Teks 4 with Bonded Washer
Product Attributes

Part #: 1010000

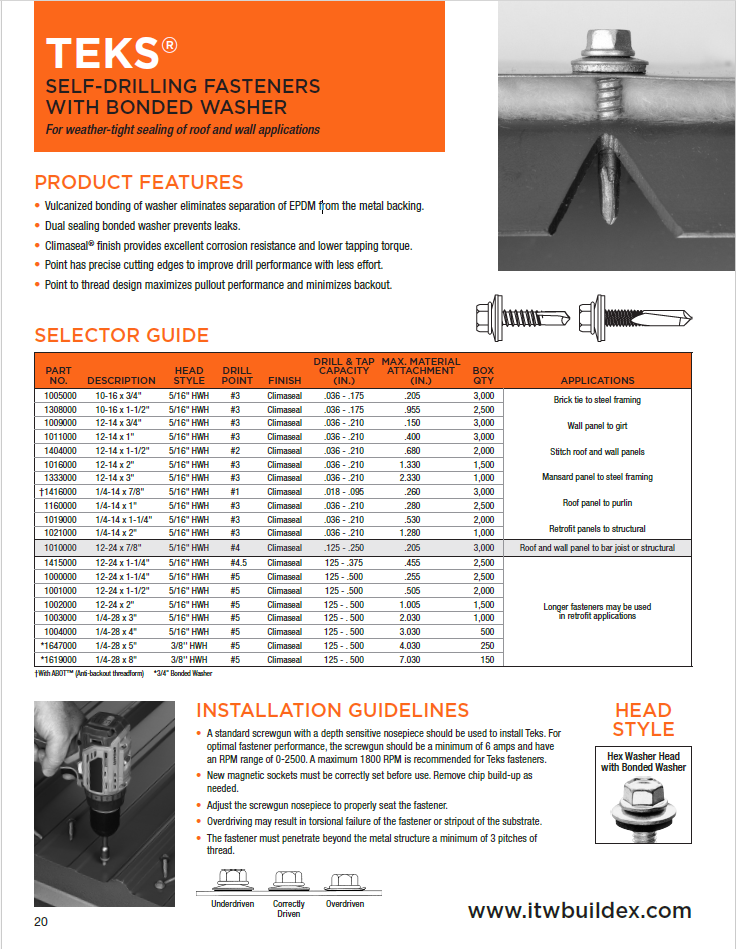

Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1010000 12-24 x 7/8'' Hex Washer Head #4 Climaseal .125-.250 0.205 3,000 #12 7/8" Steel Bonded

Features

  • Vulcanized bonding of washer eliminates separation of EPDM from the metal backing.
  • Dual sealing bonded washer prevents leaks.
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.
  • Point has precise cutting edges to improve drill performance with less effort.
  • Point-to-thread design maximizes pullout performance and minimizes backout.

General Applications & Uses

Applications

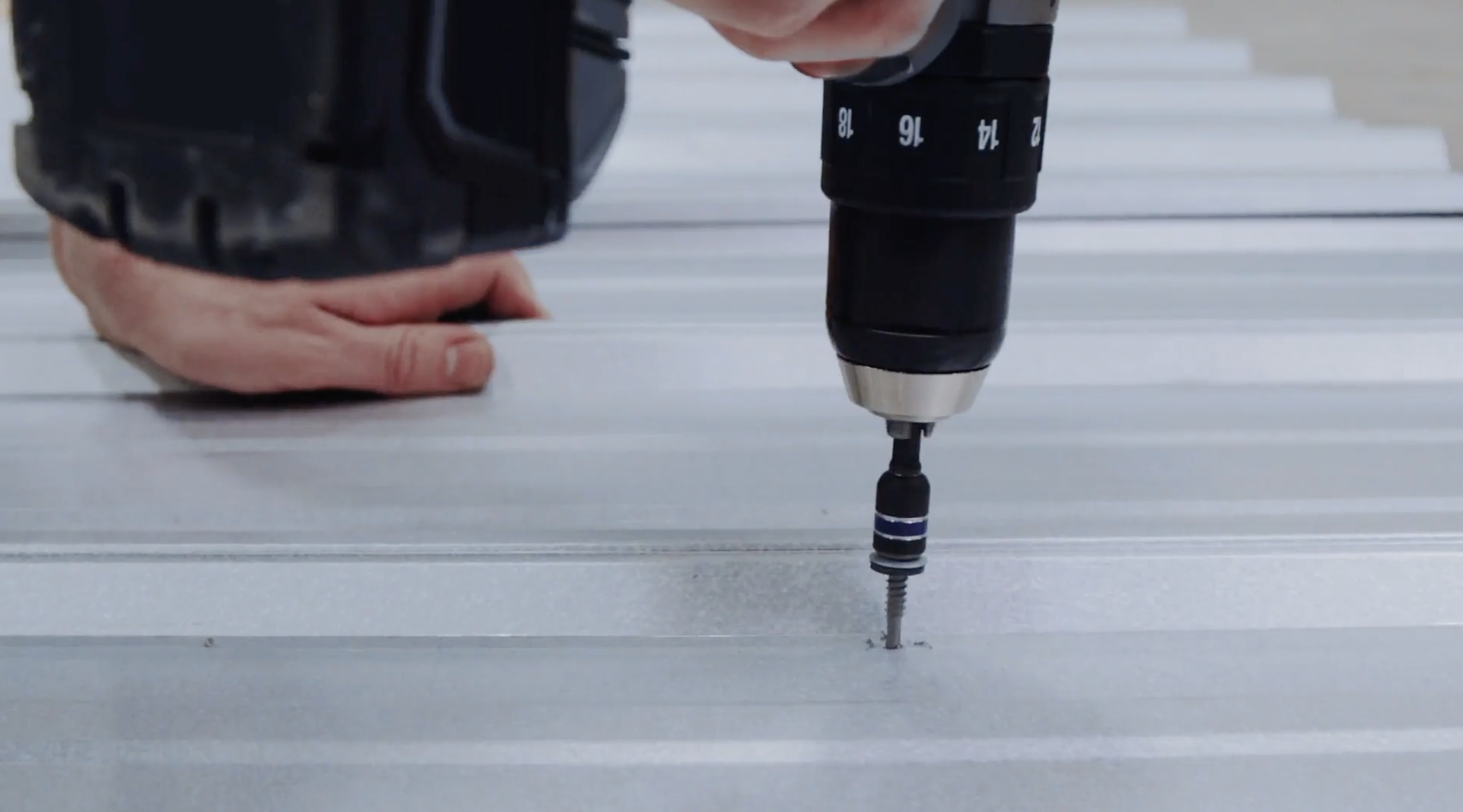

  • Attaching Exterior Metal Panels to Structural Steel
  • Mounting Rooftop Equipment and Flashing
  • Securing Medium-Gauge Framing Components
  • Installing Utility Supports or Hangers Outdoors

Product Details

  • Size: 12-24 x 7/8''
  • Product Length (Inches): 7/8"
  • Product Diameter (Inches): #12
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: No
  • UL Approved: No
  • Installation Tool: 5/16'' Drive Socket
  • Country of Origin: US
  • Paintable: No
  • BABA Compliant: No
  • Made In America: Yes
  • Buy America: No
  • Buy American: No
  • Drill Point: #4
  • Fastener Head Style: Hex Washer Head
  • Head Size: 5/16"
  • Threads Per Inch: 24
  • Thread Size: 24-Dec
  • Max Material Attachments: 0.205
  • Drill Tap Capacity: .125-.250
  • Tensile Strength: 4,750
  • Torque Strength: 100
  • ICC Approved: No
  • Washer Size: 9/16'' O.D. Bonded
  • Washer Style: Bonded
