TEKS� 5.0 HWH CL12-24 X 1-1/4"

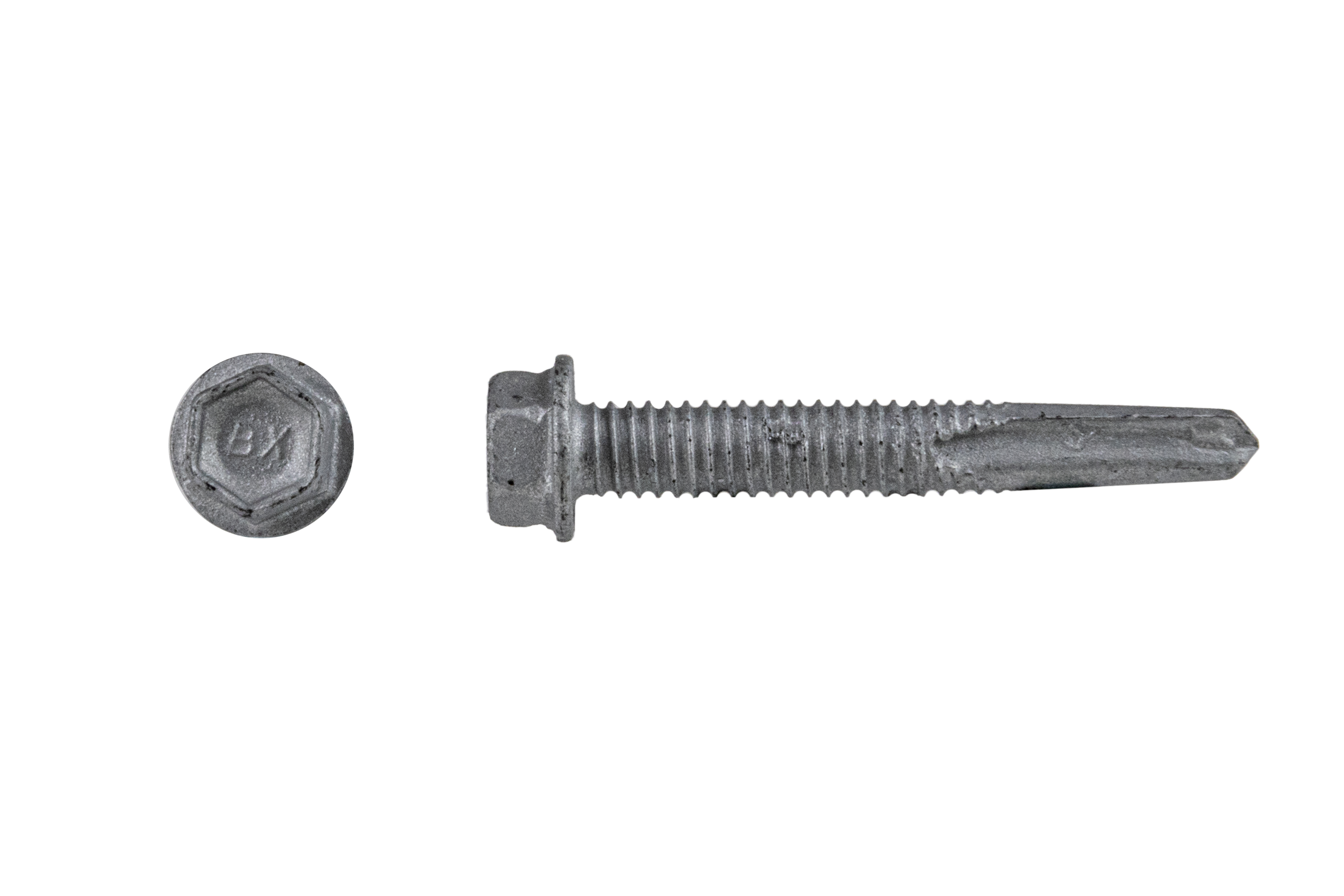

Main image for Teks 5.0
Product Attributes

Part #: 1007000
Download Submittal Report

Specifications

Part Number Size Head Style Drill Point Finish Drill & Tap Capacity Max Material Attachments Box Qty Diameter Length Material Washer
1007000 12-24 x 1-1/4" Hex Washer Head #5.0 Climaseal .125-.500 0.45 4,000 #12 1-1/4" Steel N/A

Features

  • Patented drill point improves drilling performance in 1/8 steel through steel
  • Engineered for fast drilling and smooth tapping with less effort
  • Climaseal finish provides excellent corrosion resistance and lower tapping torque.
  • Attaches up to 0.450 of materials

General Applications & Uses

Applications

  • Attaching Heavy Steel Brackets to Structural Steel
  • Securing Metal Decking to Steel Frame
  • Fastening Rooftop Mechanical Curbs and Frames
  • Assembling Steel Framing in Pre-Engineered Metal Buildings

Product Details

  • Size: 12-24 x 1-1/4"
  • Product Length (Inches): 1-1/4"
  • Product Diameter (Inches): #12
  • Material: Steel
  • Finish: Climaseal
  • Material Grade: C1022
  • FM Approved: Yes
  • Installation Tool: 5/16'' Drive Socket
  • Country of Origin: US
  • Paintable: No
  • BABA Compliant: Yes
  • Made In America: Yes
  • Buy America: Yes
  • Buy American: Yes
  • Drill Point: #5.0
  • Fastener Head Style: Hex Washer Head
  • Head Size: 5/16"
  • Threads Per Inch: 24
  • Thread Size: 24-Dec
  • Max Material Attachments: 0.45
  • Drill Tap Capacity: .125-.500
  • Tensile Strength: 4,750
  • Torque Strength: 100
  • Los Angeles Residential Code: Yes
  • California Building Code: No
  • California Residential Code: No
  • Florida Building Code: Yes
  • Florida Residential Code: Yes
  • Washer Size: N/A
  • Washer Style: N/A
